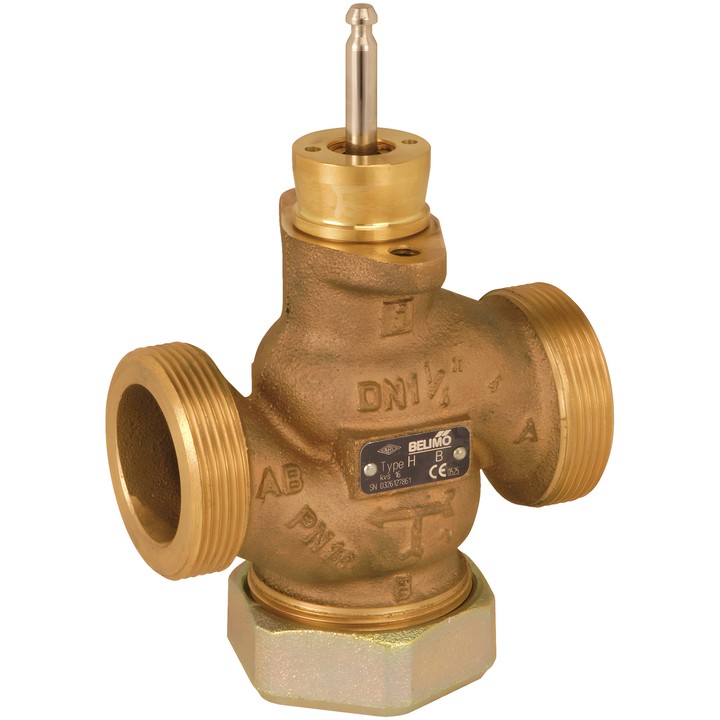

Belimo H415B - 2-way globe valve

Name: Belimo H415B - 2-way globe valve
Brand: Belimo
SKU: H415B
Price: 629.53 PLN
Availability: BackOrder

Belimo

zł629.53

VAT included

zł511.81 tax excluded

Belimo H415B is a DN 15, PN 16 2-way globe valve with G 1 1/8" male thread and Kvs 4 m³/h. Designed for water-side control in ventilation and heating systems.

Delivery in approx. 14 days

Belimo H415B – 2-way globe valve

Valve for open and closed water systems and water-side control in ventilation and heating systems. The valve plug is moved by a globe valve actuator.

Key features

DN 15, PN 16, ps 1600 kPa; G 1 1/8" male thread.
Kvs 4 m³/h; stroke 15 mm.
Medium: water or water with a maximum of 50% vol. glycol.
Medium temperature: -10...120°C [14...248°F]. Stem heating is required at -10...2°C.
Flow characteristic: equal percentage; permissible leakage: max. 0.05% of the Kvs value.
Valve body: CC499K; closing element and stem: stainless steel; stem seal: EPDM O-ring.
Installation is permitted from vertical to horizontal relative to the stem; installation with the stem pointing down is not permitted.

Brand

Belimo
Reference

H415B
EAN13

7630498105616

Kvs

4 m³/h
Medium

Water, water with up to 50% vol. glycol.
Pattern

2-way
Fluid temperature

-10...120°C [14...248°F]
Fluid temperature, note

When the medium temperature is -10...2°C, shaft heating is recommended.
Flow characteristic

Equal-percentage characteristic
Permissible leakage

Max. 0.05% of Kvs value
Pipe connection

External thread
