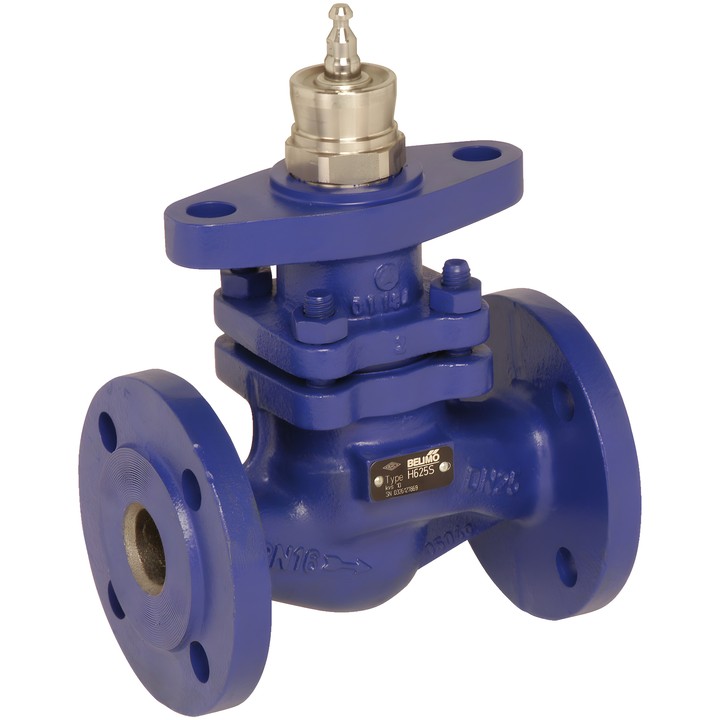

Belimo H620S - 2-way globe valve DN 20

Name: Belimo H620S - 2-way globe valve DN 20
Brand: Belimo
SKU: H620S
Price: 1448.41 PLN
Availability: BackOrder

Belimo

zł1,448.41

VAT included

zł1,177.57 tax excluded

Belimo H620S is a 2-way globe valve with flanged connection, DN 20, PN 16 and Kvs 6.3 m³/h. It is designed for water-side control in ventilation and heating systems.

Fluid temperature is 5...150°C [41...302°F]. The valve has an equal-percentage characteristic.

Delivery in approx. 14 days

Belimo H620S – 2-way globe valve

Flanged valve for closed water and steam systems in non-critical applications. It is used for water-side control in ventilation and heating systems.

Key technical data

DN 20, PN 16; Kvs 6.3 m³/h.
Connection: flange compliant with ISO 7005-2.
Fluid: water and steam (Δp/P1 <0,4), water with up to 50% vol. glycol.
Fluid temperature: 5...150°C [41...302°F]; 120°C up to 1600 kPa, 150°C up to 1400 kPa.
Flow characteristic: equal-percentage.
Permissible leakage: max. 0,05% of Kvs value.
Stroke: 15 mm; n(gl): 3; Sv min.: 100.
Body: EN-GJL-250 (GG 25); closing element, stem and seat: stainless steel; stem seal: PTFE V-ring.

Installation notes

Installation is permitted from vertical to horizontal relative to the stem; do not install with the stem pointing downwards. Observe the flow direction indicated by the arrow on the body.
