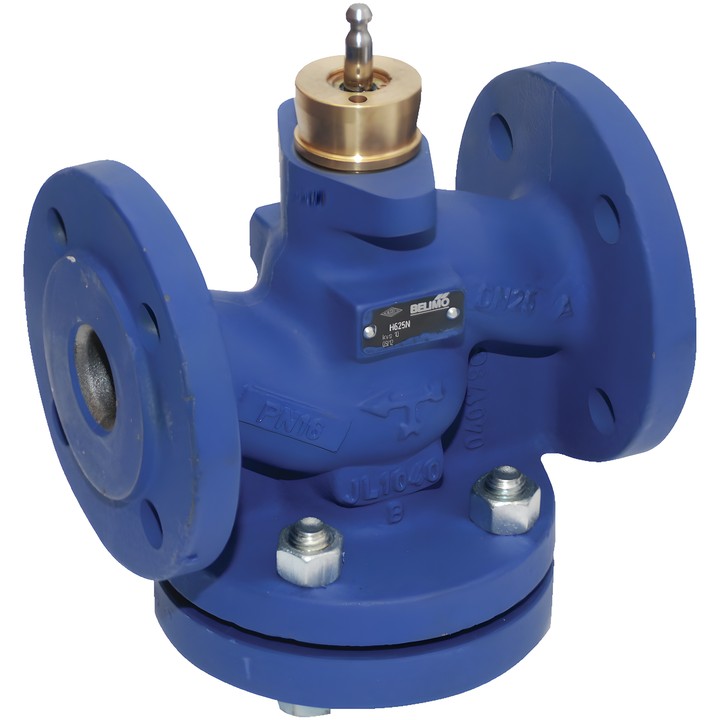

Belimo H665N - 2-way globe valve

Name: Belimo H665N - 2-way globe valve
Brand: Belimo
SKU: H665N
Price: 3903.81 PLN
Availability: BackOrder

Belimo

zł3,903.81

VAT included

zł3,173.83 tax excluded

Belimo H665N is a DN 65 2-way globe valve with a PN 16 flanged connection and Kvs 63 m³/h. It is designed for closed water systems and for water-side control in ventilation and heating systems.

It handles water and water containing up to 50% by vol. glycol at a medium temperature of -10...120°C [14...248°F].

Delivery in approx. 14 days

Belimo H665N – DN 65 globe valve

2-way globe valve for closed water systems, designed for water-side control in ventilation and heating systems. The valve is operated by a globe valve actuator.

Key features

DN 65, PN 16; pipe connection: flange.
Kvs: 63 m³/h; stroke: 30 mm.
Medium: water or water containing up to 50% by vol. glycol.
Medium temperature: -10...120°C [14...248°F].
Flow characteristic: equal percentage; permissible leakage: max. 0.05% of the Kvs value.
Body: EN-GJL-250 (GG 25); closing element and stem: stainless steel; stem seal: EPDM O-ring.

Installation notes

Installation is permitted from vertical to horizontal; installation with the stem pointing downwards is not permitted. Observe the flow direction indicated by the arrow on the body. For a medium temperature of -10...2°C, the technical data sheet specifies that stem heating is required.

Brand

Belimo
Reference

H665N
EAN13

7630498106392

Kvs

63 m³/h
Medium

Water, water with up to 50% vol. glycol.
Pattern

2-way
Fluid temperature

-10...120°C [14...248°F]
Fluid temperature, note

When the medium temperature is -10...2°C, shaft heating is recommended.
Flow characteristic

Equal-percentage characteristic
Permissible leakage

Max. 0.05% of Kvs value
Pipe connection

Flange
