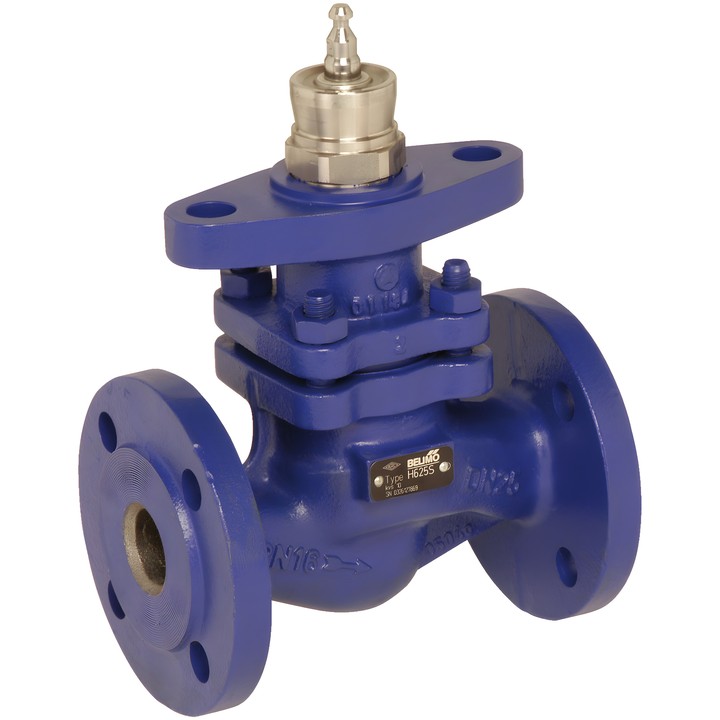

Belimo H665S - 2-way globe valve

Name: Belimo H665S - 2-way globe valve
Brand: Belimo
SKU: H665S
Price: 4071.00 PLN
Availability: BackOrder

Belimo

zł4,071.00

VAT included

zł3,309.76 tax excluded

Belimo H665S is a 2-way globe valve with flanged connection, DN 65, PN 16 and Kvs 63 m³/h. Designed for water-side control in ventilation and heating systems.

Medium temperature: 5...150°C [41...302°F]. The flow characteristic is equal percentage.

Delivery in approx. 14 days

Belimo H665S – 2-way globe valve

Valve for closed water and steam systems in non-critical applications and for continuous water-side control in ventilation and heating systems.

Key specifications

Nominal size: DN 65; nominal pressure: PN 16.
Flow coefficient: Kvs 63 m³/h; stroke: 30 mm.
Pipe connection: flange according to ISO 7005-2.
Medium: water and steam (Δp/P1 <0,4), water with max. 50% vol. glycol.
Medium temperature: 5...150°C [41...302°F]; 120°C at 1600 kPa, 150°C at 1400 kPa.
Flow characteristic: equal percentage (VDI/VDE 2173), optimised over the opening range.
Permissible leakage: max. 0,05% of the Kvs value.
Body: EN-GJL-250 (GG 25); closing element, stem and seat: stainless steel; stem seal: PTFE V-ring.

Permitted installation from vertical to horizontal relative to the stem. Installation with the stem pointing downwards is not permitted. Observe the flow direction indicated by the arrow on the body.
