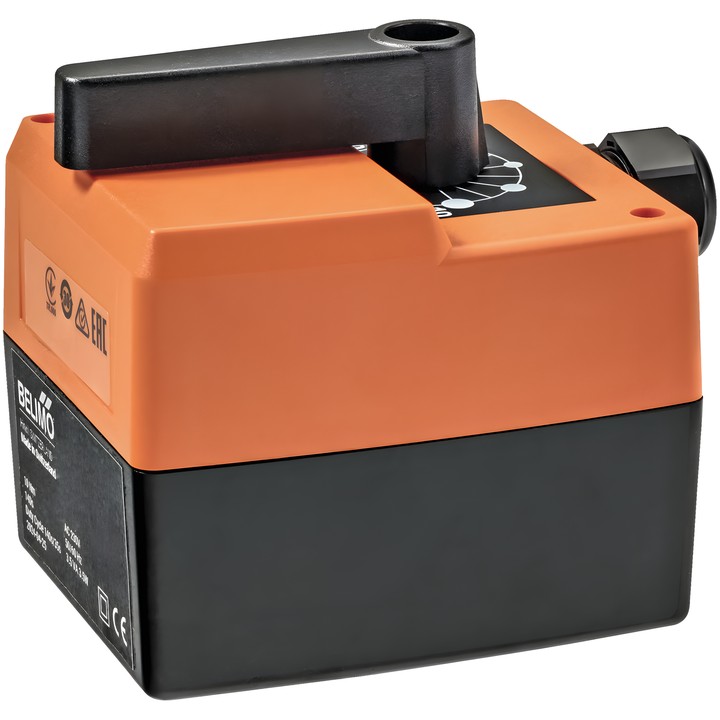

Belimo HT24-SR-T rotary actuator for mixing valves, designed for use with a mounting kit. Torque 10 Nm, AC/DC 24 V supply and 2...10 V modulating control.

Running time is 140 s / 90°, and the position feedback signal is 2...10 V. Electrical connection: terminals.

Delivery in approx. 14 days
Share

Belimo HT24-SR-T

Rotary actuator for operating mixing valves in HVAC systems, used with a mounting kit. The actuator position is determined by the Y control signal.

Key features

  • Torque: 10 Nm.
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Modulating control; Y operating range: 2...10 V, with a selectable 0...10 V or 2...10 V range.
  • Position feedback signal U: 2...10 V.
  • Motor running time: 140 s / 90°; rotation angle: 90°.
  • Motor direction of rotation: clockwise (cw).
  • Power consumption during operation: 1.5 W; power for wire sizing: 2.5 VA.
  • Power and control connection: 4 mm² terminals (cable ø6...8 mm, 4-core).
  • Manual adjustment by temporarily or permanently disengaging the gear using the knob on the housing.
  • IEC/EN degree of protection: IP40; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).

The actuator is overload-protected and stops automatically when the end stop is reached. Protect the device from moisture; it is not intended for outdoor use.

  • Brand
    Belimo
  • Reference
    HT24-SR-T
  • EAN13
    7630498103742

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    1.5 W
  • Rated power
    2.5 VA
  • Power supply control connection
    Terminals 4 mm² (cable ø6...8 mm, 4-core)
  • Control type
    DC 2...10 V
  • Protection rating
    IP40
  • Manual override
    Temporary and permanent gear disengagement using the knob on the housing
  • Running time (motor)
    140 s / 90°
  • Torque
    10 Nm
  • Direction of movement - motor
    clockwise rotation (cw)
  • Rotational angle
    90°

Techniczna karta katalogowa

Download (1.65MB)

Instrukcja montażu

Download (236.5KB)

EU Declaration of Conformity – HT24-SR-T

Download (39.75KB)

Environmental Declaration – HT..

Download (72.01KB)
