Belimo 01CT-1LPF - passive wired temperature sensor

Belimo 01CT-1LPF - passive wired temperature sensor

Belimo
zł84.26
VAT included
zł68.50 tax excluded

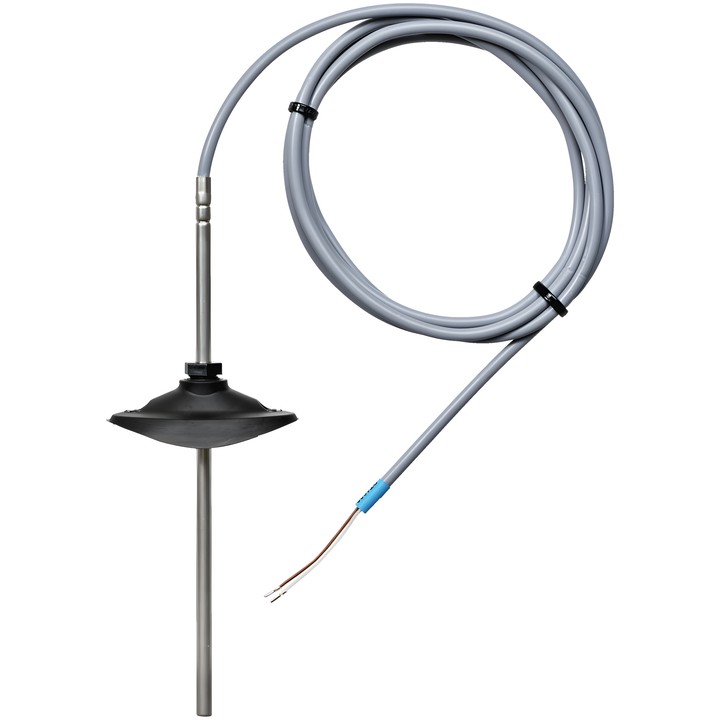

Passive wired temperature sensor for measuring in air ducts. Model 01CT-1LPF has an NTC10k (10k2) output signal, a probe 200 mm long and 6 mm in diameter, and a mounting flange.

Electrical connection: 2 m, 2-core cable. Protection rating: IP67 / NEMA 4X.

Delivery in approx. 14 days
Share

Belimo 01CT-1LPF – wired temperature sensor

Passive sensor for measuring temperature in air ducts, equipped with a stainless steel probe, PVC cable and mounting flange.

Key features

  • Output signal: NTC10k (10k2).
  • Probe length: 200 mm; probe diameter: 6 mm.
  • Electrical connection: 2 m, 2-core cable.
  • Temperature measuring range: -35...100°C [-30...210°F].
  • Accuracy for NTC..: ±0.2°C @ 25°C [±0.35°F @ 77°F].
  • Protection rating: IP67 and NEMA 4X.
  • Includes plastic mounting flange A-22D-A03 for a 6 mm probe.

  • Brand
    Belimo
  • Reference
    01CT-1LPF
  • EAN13
    7630498117435

  • Electrical connection
    Cable
  • Measured values
    Temperature
  • Output signal
    NTC10k (10k2)
  • Passive temperature sensor output
    NTC10k (10k2)
  • Probe length
    200 mm

Techniczna karta katalogowa

Download (819.61KB)

Instrukcja montażu

Download (401.67KB)

Techniczna karta katalogowa – 01CT-1..F

Download (817.46KB)

Environmental Declaration – 01CT..

Download (71.67KB)
