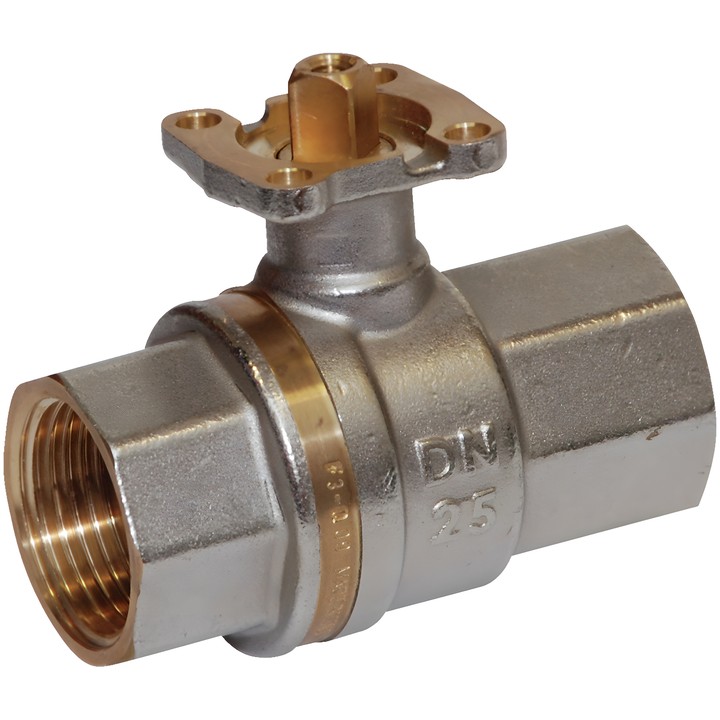

Belimo K232B - 2-way open/close ball valve

Belimo K232B - 2-way open/close ball valve

Belimo
zł921.27
VAT included
zł749.00 tax excluded

Belimo K232B is a 2-way open/close ball valve with DN 32, PN 25 and Kvs 84 m³/h. It has an Rp 1 1/4" female thread.

Designed for water and water with a maximum of 50% vol. glycol; fluid temperature is -15...90°C [5...194°F].

Product unavailable
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo K232B – 2-way ball valve

Open/close valve for open and closed water systems. The body is made of nickel-plated brass.

Key features

  • Type: K232B; version: LYBRA; manufacture: Effebi.
  • Nominal diameter: DN 32; PN 25.
  • Connection: Rp 1 1/4" female thread, in accordance with ISO 7-1.
  • Kvs: 84 m³/h.
  • Medium: water, water with a maximum of 50% vol. glycol.
  • Fluid temperature: -15...90°C [5...194°F].
  • Closing element: chrome-plated brass; stem: brass; seat: PTFE, Viton O-ring.
  • Operation: maintenance-free.

Permissible operating pressure ps depends on temperature; consult the pressure-temperature chart in the technical data sheet.

  • Brand
    Belimo
  • Reference
    K232B
  • EAN13
    7630498142024

  • Kvs
    84 m³/h
  • Medium
    Water, water with up to 50% vol. glycol.
  • Pattern
    2-way
  • Fluid temperature
    -15...90°C [5...194°F]
  • Pipe connection
    Internal thread

Techniczna karta katalogowa

Download (1.6MB)

Techniczna karta katalogowa – K2..

Download (1.6MB)
