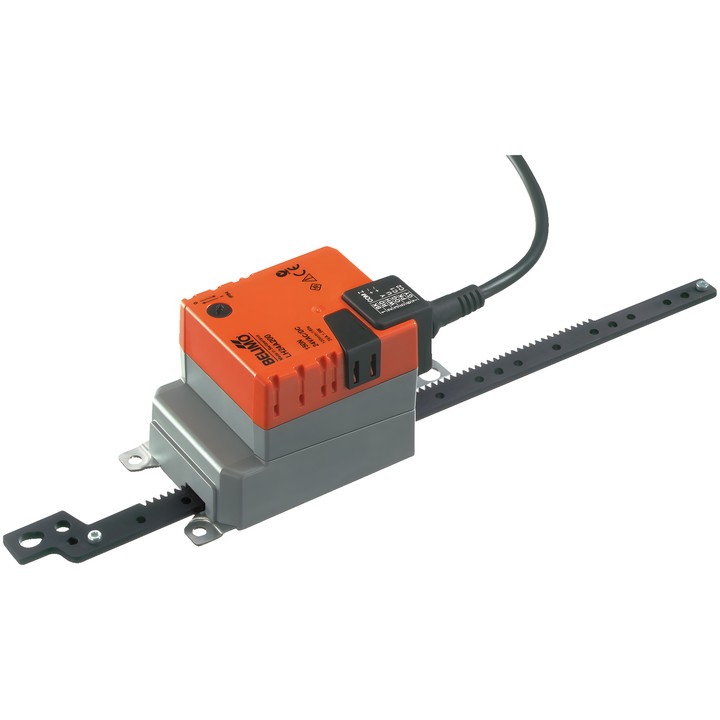

Belimo LH24A200 - linear actuator

Name: Belimo LH24A200 - linear actuator
Brand: Belimo
SKU: LH24A200
Price: 497.02 PLN
Availability: BackOrder

Belimo

zł497.02

VAT included

zł404.08 tax excluded

Belimo LH24A200 linear actuator for controlling dampers and gates in building services installations. Force 150 N, AC/DC 24 V supply and 3-point Close/Open control.

Max. stroke 200 mm, adjustable in 20 mm increments; operating time 150 s / 100 mm. Protection rating IP54.

Delivery in approx. 14 days

Belimo LH24A200 – linear actuator

Actuator for controlling dampers and gates in building services installations. According to the technical data sheet, it is intended for air dampers with an area of up to approx. 1 m².

Key features and specifications

Motor force: 150 N.
Rated voltage: AC/DC 24 V; frequency 50/60 Hz.
Control: 3-point Close/Open.
Stroke: 200 mm; max. 200 mm, adjustable in 20 mm increments. Stroke can be limited at both ends using mechanical stops.
Motor operating time: 150 s / 100 mm.
Power consumption during operation: 1.5 W; at rest: 0.5 W; for cable sizing: 3 VA.
Direction of movement selected by switch 0 (extended) / 1 (retracted).
Manual adjustment using a push button with locking capability.
Power and control connection: 1 m cable, 3x 0.75 mm².
IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
Ambient temperature: -30...50°C [-22...122°F].

Brand

Belimo
Reference

LH24A200
EAN13

7630498112034

AC/DC voltage

AC/DC 24 V
Power consumption (running)

1.5 W
Power consumption (holding)

0.5 W
Rated power

3 VA
Power supply control connection

Cable 1 m, 3x 0.75 mm²
Control type

Open/close, 3-point
Protection rating

IP54
NEMA protection rating

NEMA 2
Enclosure type

UL Enclosure Type 2
Force

150 N
Manual override

Push-button, with locking option
Stroke

200 mm
Running time (motor)

150 s / 100 mm
Ambient temperature

-30...50°C [-22...122°F]
Direction of movement - motor

Selectable by switch: 0 (extended) / 1 (retracted)
