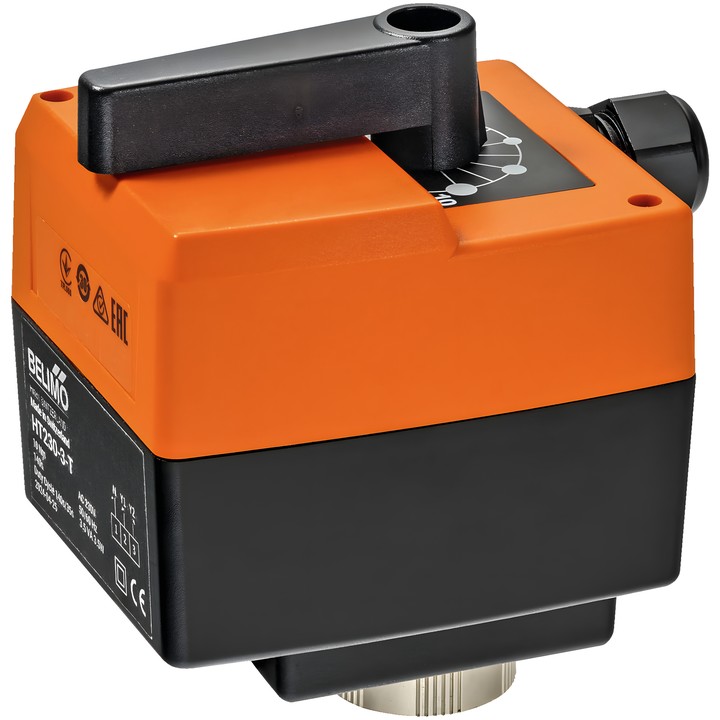

Belimo NRD24-3-SI - short-stroke actuator for globe valves

Name: Belimo NRD24-3-SI - short-stroke actuator for globe valves
Brand: Belimo
SKU: NRD24-3-SI
Price: 1205.40 PLN
Availability: OutOfStock

Belimo

zł1,205.40

VAT included

zł980.00 tax excluded

Short-stroke actuator for Siemens globe valves in HVAC systems. Force 500 N, AC 24 V supply, 3-point control and 5.5 mm stroke.

Motor running time is 140 s / 5.5 mm. The actuator has manual gear disengagement using a knob on the housing and an IP40 protection rating.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo NRD24-3-SI

Actuator for operating Siemens short-stroke globe valves in stationary heating, ventilation and air conditioning systems.

Main features and specifications

Actuator force: 500 N; stroke: 5.5 mm.
Rated voltage: AC 24 V; frequency: 50/60 Hz; voltage range: AC 19.2...28.8 V.
Control: 3-point; motor running time: 140 s / 5.5 mm.
Power consumption during operation: 1.5 W; sizing power for cable selection: 1.5 VA.
Power and control connection: 1 m cable, 3x 0.75 mm².
Manual operation: temporary or permanent gear disengagement using a knob on the housing.
Actuator mounting: G 3/4"; position indicator with reversible scale plate.
IEC/EN protection rating: IP40; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).

The actuator is protected against overload and stops automatically when the end position is reached. It is not suitable for outdoor use; protect it from moisture.

Brand

Belimo
Reference

NRD24-3-SI
EAN13

7630498121357

AC/DC voltage

AC 24 V
Power consumption (running)

1.5 W
Rated power

1.5 VA
Power supply control connection

Cable 1 m, 3x 0.75 mm²
Control type

3-point
Protection rating

IP40
Force

500 N
Manual override

Temporary and permanent gear disengagement using the knob on the housing
Stroke

5.5 mm
Running time (motor)

140 s / 5.5 mm
