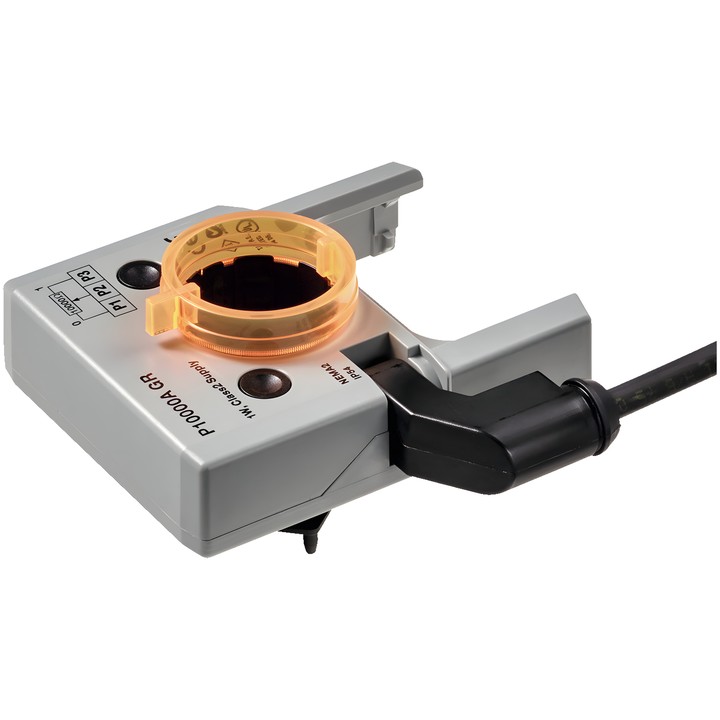

Belimo P10000A GR - feedback potentiometer

Name: Belimo P10000A GR - feedback potentiometer
Brand: Belimo
SKU: P10000A GR
Price: 688.80 PLN
Availability: OutOfStock

Belimo

zł688.80

VAT included

zł560.00 tax excluded

Grey feedback potentiometer for damper actuators and rotary actuators. Nominal resistance 10 kΩ, tolerance ±5%.

Mounted directly on the shaft clamp of a damper actuator or on the position indicator of a rotary actuator. Connection: 1 m cable, 3 x 0.75 mm², FRNC (halogen-free).

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo P10000A GR feedback potentiometer

Clip-on feedback potentiometer for damper actuators and rotary actuators. The carrier plate transfers the position from the shaft clamp or position indicator to the potentiometer. The device can be used with controllers featuring fixed feedback for modulating damper control, and for indicating damper position or as a setting device for actuators operating in parallel.

Key features and technical data

Nominal resistance: 10 kΩ; tolerance: ±5%.
Maximum load capacity: 1 W; linearity: ±2%.
Resolution: min. 1%; residual resistance: max. 5% on both sides.
Potentiometer connection: 1 m cable, 3 x 0.75 mm², FRNC (halogen-free).
IEC/EN degree of protection: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
Ambient temperature: -30...50°C [-22...122°F]; ambient humidity: max. 95% RH, non-condensing.
Cover and housing base colour: grey.

Wires: S1 – violet, S2 – red, S3 – white. The manufacturer recommends connecting the potentiometer as a voltage divider if it operates mainly within the same small angular range.
