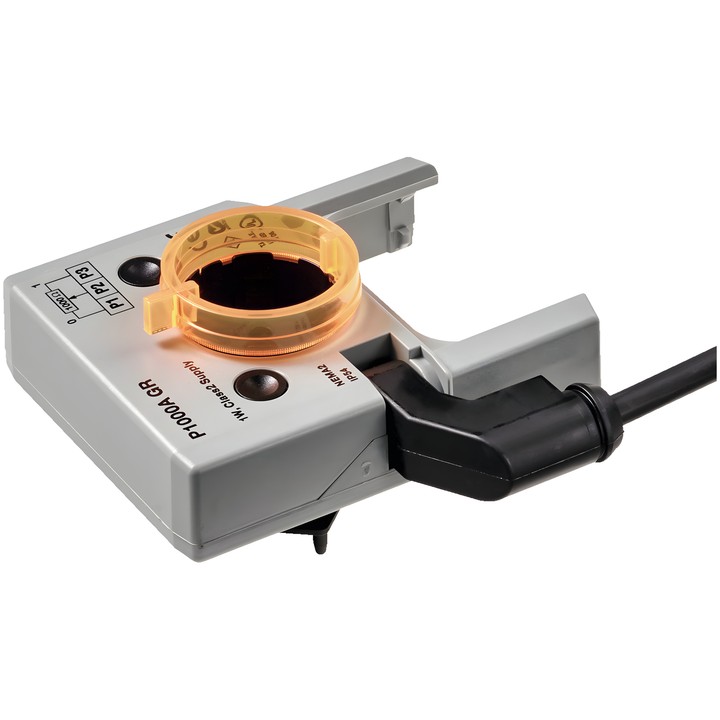

Belimo P1000A GR - feedback potentiometer
Price:
zł688.80
VAT included
zł560.00 tax excluded
Clip-on feedback potentiometer for damper actuators and rotary actuators. Nominal resistance 1 kΩ; grey housing.
Connection: 1 m cable, 3 x 0.75 mm², FRNC (halogen-free). Degree of protection IP54.
Belimo P1000A GR feedback potentiometer
The potentiometer transfers the position of a damper actuator or rotary actuator by means of a carrier plate fitted to the shaft clamp or position indicator as appropriate. It is mounted directly at these points.
It can be used with controllers featuring fixed feedback for modulating damper control. The manufacturer also specifies its use for damper position indication and as a setpoint device for actuators operating in parallel.
Key features and specifications
- Nominal resistance: 1 kΩ; tolerance: ±5%.
- Power rating: Max. 1 W; linearity: ±2%; resolution: Min. 1%.
- Residual resistance: Max. 5% on both sides.
- Potentiometer connection: 1 m cable, 3 x 0.75 mm², FRNC (halogen-free).
- Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
- Ambient temperature: -30...50°C [-22...122°F]; ambient humidity: Max. 95% RH, non-condensing.
- Housing cover and base: grey.
-
Brand
-
ReferenceP1000A GR
-
EAN137630498121494
-
Protection ratingIP54
-
NEMA protection rating346
-
Ambient temperature-30...50°C [-22...122°F]
-
Potentiometer connectionCable 1 m, 3x 0.75 mm², FRNC (halogen-free)
