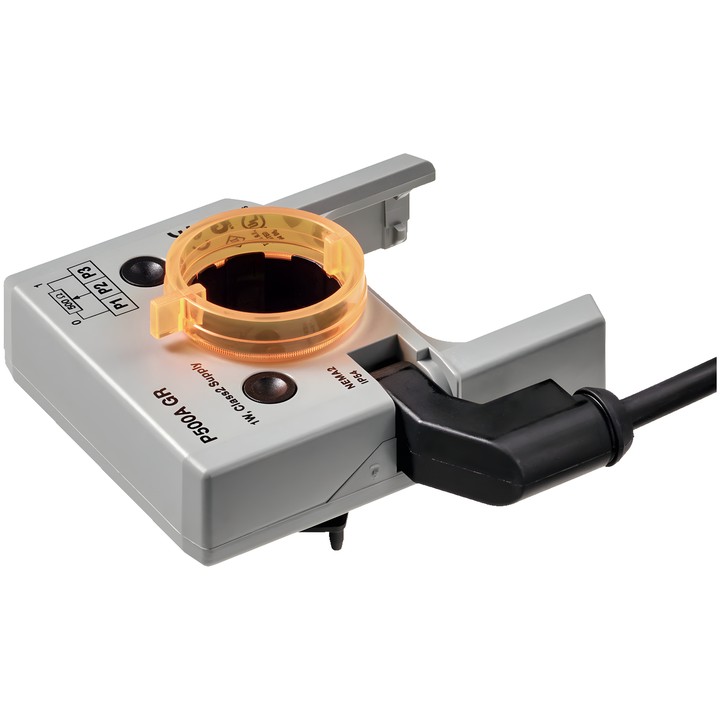

Belimo P500A GR - feedback potentiometer

Name: Belimo P500A GR - feedback potentiometer
Brand: Belimo
SKU: P500A GR
Price: 722.01 PLN
Availability: OutOfStock

Belimo

zł722.01

VAT included

zł587.00 tax excluded

Clip-on feedback potentiometer for damper actuators and rotary actuators. Nominal resistance 500 Ω, grey colour.

Connection: 1 m cable, 3 x 0.75 mm², FRNC (halogen-free). Degree of protection IP54.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo P500A GR feedback potentiometer

Potentiometer for damper actuators and rotary actuators. The carrier plate transfers the position from the shaft clamp of the damper actuator or the position indicator of the rotary actuator directly to the potentiometer.

Designed for modulating control of dampers with controllers featuring fixed feedback. It can also be used to indicate damper position or as a positioner for actuators operating in parallel.

Key features and specifications

Nominal resistance: 500 Ω; tolerance: ±5%.
Maximum load: 1 W; linearity: ±2%; resolution: Min. 1%.
Residual resistance: Max. 5% on both sides.
Potentiometer connection: 1 m cable, 3 x 0.75 mm², FRNC (halogen-free).
Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
Ambient temperature: -30...50°C [-22...122°F].
Housing colour: grey.
Mounts directly on the shaft clamp of the damper actuator or on the position indicator of the rotary actuator.
