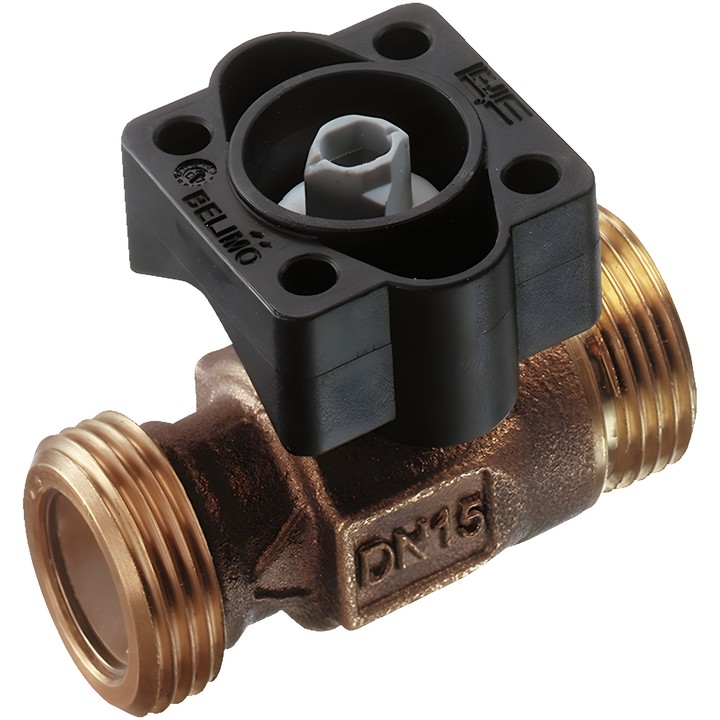

Belimo R413D - 2-way control valve

Name: Belimo R413D - 2-way control valve
Brand: Belimo
SKU: R413D
Price: 727.07 PLN
Availability: BackOrder

Belimo

zł727.07

VAT included

zł591.11 tax excluded

Belimo R413D is a 2-way valve with a regulating orifice, DN 15, PN 40, with G 1" male thread. Kvs 4 m³/h, ps 2700 kPa. For water and water with up to 50% vol. glycol; fluid temperature 2...130°C [36...266°F].

Delivery in approx. 14 days

Belimo R413D – 2-way control valve

Valve with a regulating orifice and equal-percentage characteristic. The body is made of low-lead gunmetal (CuSn4Zn6Pb3).

Key features

DN 15, PN 40; connection: G 1" male thread.
Kvs 4 m³/h; ps 2700 kPa.
Maximum differential pressure ∆pmax 400 kPa; closing pressure 1400 kPa.
Medium: water, water with up to 50% vol. glycol.
Fluid temperature: 2...130°C [36...266°F]. The permissible temperature may be limited depending on the actuator type.
Flow characteristic: equal-percentage; leakage: bubble-tight, leakage class A.
Closing element and stem: stainless steel; stem seal: FKM; seat: ETFE.

The valve can be mounted from the vertical to the horizontal position. Do not mount it suspended with the stem pointing downwards. Observe the flow direction indicated by the arrow on the body.

Brand

Belimo
Reference

R413D
EAN13

7630498121951

Kvs

4 m³/h
Medium

Water, water with up to 50% vol. glycol.
Pattern

2-way
Fluid temperature

2...130°C [36...266°F]
Fluid temperature, note

The permissible medium temperature may be limited depending on the actuator type. The limitations can be found in the relevant actuator data sheets.
Differential pressure

∆pmax 400 kPa
Closing pressure

1400 kPa
Flow characteristic

Equal-percentage characteristic
Permissible leakage

Bubble-tight, leakage class A
Pipe connection

External thread
