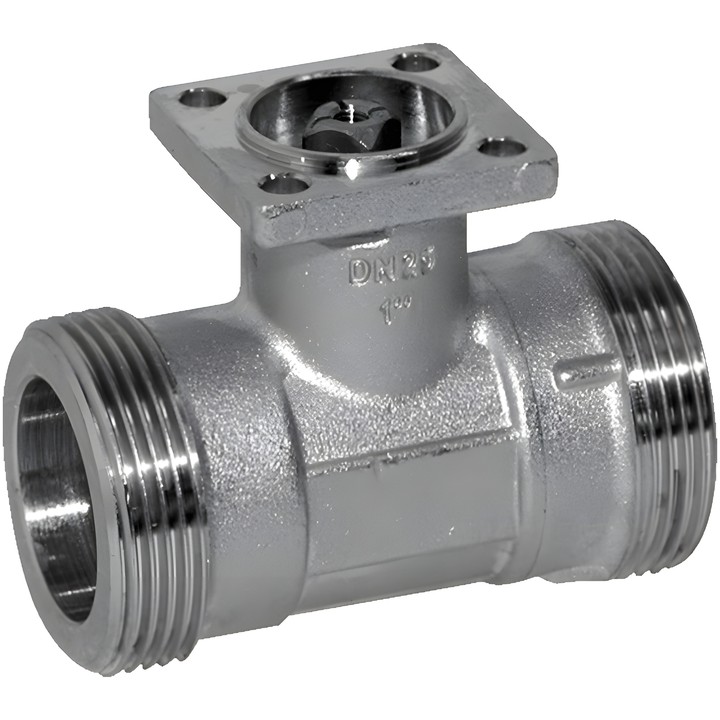

Belimo R420 - 2-way on/off ball valve

Name: Belimo R420 - 2-way on/off ball valve
Brand: Belimo
SKU: R420
Price: 336.93 PLN
Availability: BackOrder

Belimo

zł336.93

VAT included

zł273.93 tax excluded

Belimo R420 is a 2-way on/off ball valve with G 1 1/4" male thread. Specifications: DN 20, PN 40, Kvs 21 m³/h and medium temperature -10...100°C [14...212°F].

Delivery in approx. 14 days

Belimo R420 – on/off ball valve

2-way valve with male thread, designed for open and closed water systems. It is used to shut off flow on the water side and for on/off control in ventilation and heating systems.

Key features

DN 20, G 1 1/4" male thread, PN 40.
Kvs 21 m³/h; maximum differential pressure Δpmax 400 kPa; closing pressure ∆ps 1400 kPa.
Medium: water and water with up to 50% by volume glycol; potable water on request.
Medium temperature: -10...100°C [14...212°F]. Valve neck extension is recommended at -10...2°C; the permissible temperature may depend on the actuator type.
Bubble-tight, leakage rate A (EN 12266-1).
Nickel-plated brass body; stainless steel closing element and stem.
Rotation angle 90°; the valve opens counter-clockwise and closes clockwise.

Differential pressure recommendation: 200 kPa to ensure quiet operation. Permitted installation: from vertical to horizontal relative to the stem; installation with the stem pointing downwards is not permitted.

Brand

Belimo
Reference

R420
EAN13

7630498108136

Kvs

21 m³/h
Medium

Water, water with up to 50% vol. glycol.
Pattern

2-way
Fluid temperature

-10...100°C [14...212°F]
Fluid temperature, note

At a fluid temperature of -10...2°C, extending the valve neck is recommended. The permissible fluid temperature may be limited depending on the actuator type. Refer to the relevant actuator data sheets for limitations.
Differential pressure

∆pmax 400 kPa
Closing pressure

1400 kPa
Differential pressure note

200 kPa for quiet operation
Permissible leakage

Bubble-tight, leakage class A
Pipe connection

External thread
