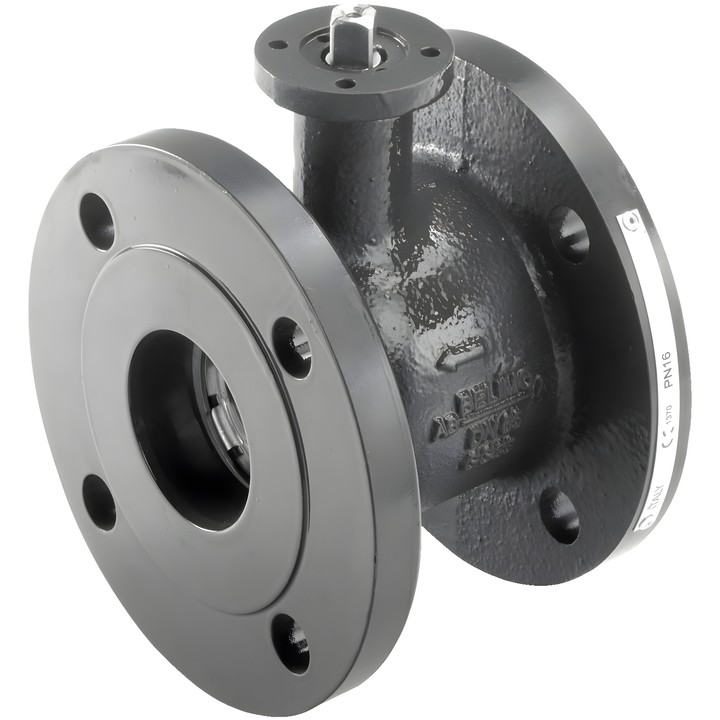

Belimo R6125W250-S8 - 2-way flanged control valve

Belimo R6125W250-S8 - 2-way flanged control valve

Belimo
zł9,553.69
VAT included
zł7,767.23 tax excluded

Belimo R6125W250-S8 is a 2-way ball valve with a regulating insert for closed-loop water systems. DN 125, PN 16, Kvs 250 m³/h; flanged connection.

Designed for water-side control in ventilation and heating systems. Permitted media are water or water with a maximum of 50% by volume glycol, at a temperature of -10...120°C [14...248°F].

Delivery in approx. 14 days
Share

Belimo R6125W250-S8 control valve

2-way ball valve with a regulating insert, designed for closed-loop water systems and water-side control in ventilation and heating systems. The integrated insert provides an equal-percentage characteristic.

Key technical data

  • DN 125, PN 16, Kvs 250 m³/h; flanged connection in accordance with EN 1092-2.
  • Media: water, water with a maximum of 50% by volume glycol; medium temperature -10...120°C [14...248°F].
  • Differential pressure: ∆pmax 400 kPa; closing pressure: 690 kPa. 200 kPa is specified for quiet operation.
  • Flow characteristic: equal-percentage (VDI/VDE 2173), optimised in the opening range.
  • Tightness: bubble-tight, leakage rate class A (EN 12266-1).
  • Body: EN-GJL-250 (GG 25); closure element: AISI 316 stainless steel; stem: AISI 304 stainless steel; stem seal: EPDM; seat: PTFE.
  • Rotation angle: 90°; operating range: 15...90°.

Permitted installation: from vertical to horizontal relative to the stem. Installation with the stem pointing downwards is not permitted. Observe the flow direction marked by the arrow on the body.

  • Brand
    Belimo
  • Reference
    R6125W250-S8
  • EAN13
    7630498108679

  • Kvs
    250 m³/h
  • Medium
    Water, water with up to 50% vol. glycol.
  • Pattern
    2-way
  • Fluid temperature
    -10...120°C [14...248°F]
  • Differential pressure
    ∆pmax 400 kPa
  • Closing pressure
    690 kPa
  • Differential pressure note
    200 kPa for quiet operation
  • Flow characteristic
    Equal-percentage characteristic
  • Permissible leakage
    Bubble-tight, leakage class A
  • Pipe connection
    Flange

Techniczna karta katalogowa

Download (1.31MB)

Instrukcja montażu

Download (650.97KB)

Techniczna karta katalogowa – R6..W..-S8

Download (1.31MB)

EU Declaration of Conformity – R6xxW63-320-S8 LG-CCV

Download (38.39KB)

Environmental Declaration – R6.. DN65-150

Download (70.57KB)
