Belimo SGE24 - positioner for damper actuators

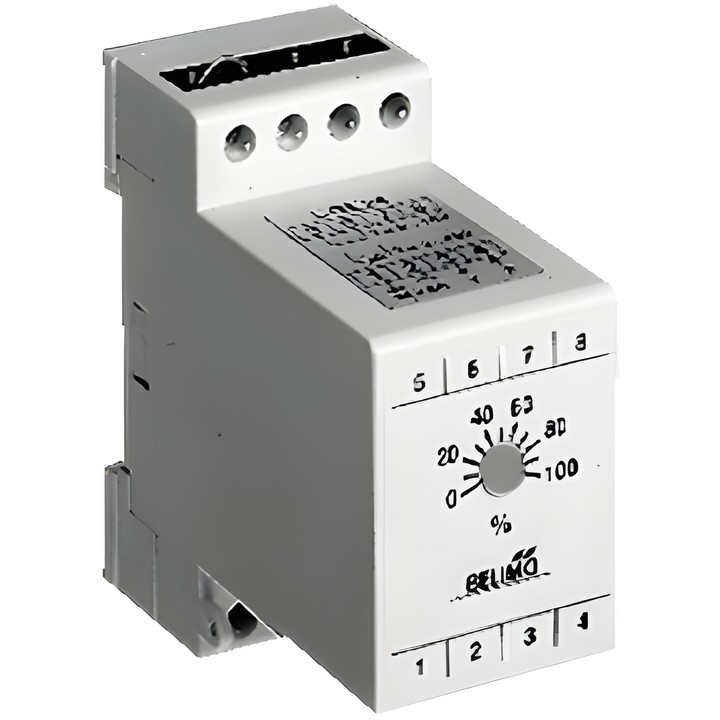

Belimo SGE24 positioner

SGE24 is used for remote control of modulating damper actuators or to limit the lower value of the output signal from modulating controllers. The control signal Y is generated proportionally to the position of the rotary knob.

Key features and technical data

• Supply: AC/DC 24 V; rated voltage frequency: 50/60 Hz.
• Rated voltage range: AC 19.2...28.8 V / DC 19.2...28.8 V.
• Operating range Y: 2...10 V, selectable as 0...10 V or 2...10 V.
• Scale: 0...100%; the rotation angle can be mechanically limited using the rotary knob.
• Power consumption during operation: 0.3 W; power for cable sizing: 1 VA.
• Power and control connection: 4 mm² terminals.
• Control cabinet installation by snapping onto a 35 mm DIN rail.
• Degree of protection IEC/EN: IP20; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
• Ambient temperature: -20...50°C [-4...122°F].
