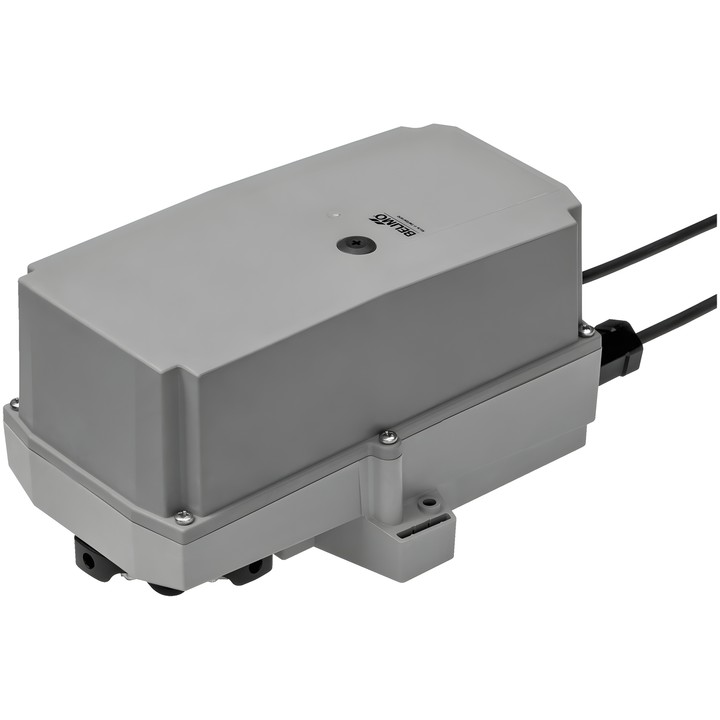

Belimo SM230PSR - damper actuator

Belimo SM230PSR - damper actuator

Belimo
zł1,758.11
VAT included
zł1,429.36 tax excluded

RobustLine modulating rotary actuator for dampers in HVAC systems. Torque 20 Nm, rated voltage AC 100...240 V, control 2...10 V and running time 150 s / 90°.

IEC/EN IP66/67 degree of protection. The actuator has a universal shaft clamp 14...20 mm and manual override by push button, with the option to lock it.

Delivery in approx. 14 days
Share

Belimo SM230PSR – damper actuator

The RobustLine modulating actuator is designed to position dampers in stationary HVAC systems. The technical data sheet specifies a damper size of up to approx. 4 m² and protection against corrosion, chemical agents, UV radiation, moisture and condensation.

Key features

  • Torque: 20 Nm.
  • Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
  • Modulating control: 2...10 V; position feedback signal: 2...10 V.
  • Motor running time: 150 s / 90°; maximum rotation angle: 95°.
  • Direction of rotation selected by 0/1 switch; manual override by push button, with the option to lock it.
  • Mechanical rotation angle limit stops and mechanical position indicator.
  • Universal shaft clamp: 14...20 mm.
  • Power consumption during operation: 3.5 W; at rest: 1 W; sizing power for cable selection: 6.5 VA.
  • Power connection: 1 m cable, 2x 0.75 mm²; control connection: 1 m cable, 4x 0.75 mm². Halogen-free cables.
  • IEC/EN IP66/67 degree of protection; IEC/EN protection class II, reinforced insulation.
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    SM230PSR
  • EAN13
    7630498114397

  • AC/DC voltage
    AC 100...240 V
  • Power consumption (running)
    3.5 W
  • Power consumption (holding)
    1 W
  • Rated power
    6.5 VA
  • Control type
    DC 2...10 V
  • Protection rating
    IP66/67
  • NEMA protection rating
    NEMA 4X
  • Enclosure type
    UL Enclosure Type 4X
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Power connection
    Cable 1 m, 2x 0.75 mm², halogen-free
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    20 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 14...20 mm
  • Control connection
    Cable 1 m, 4x 0.75 mm², halogen-free

Techniczna karta katalogowa

Download (958.2KB)

Instrukcja montażu

Download (552.43KB)

EU Declaration of Conformity – SM230PSR

Download (32.76KB)

Environmental Declaration – SM..P..

Download (72.51KB)
