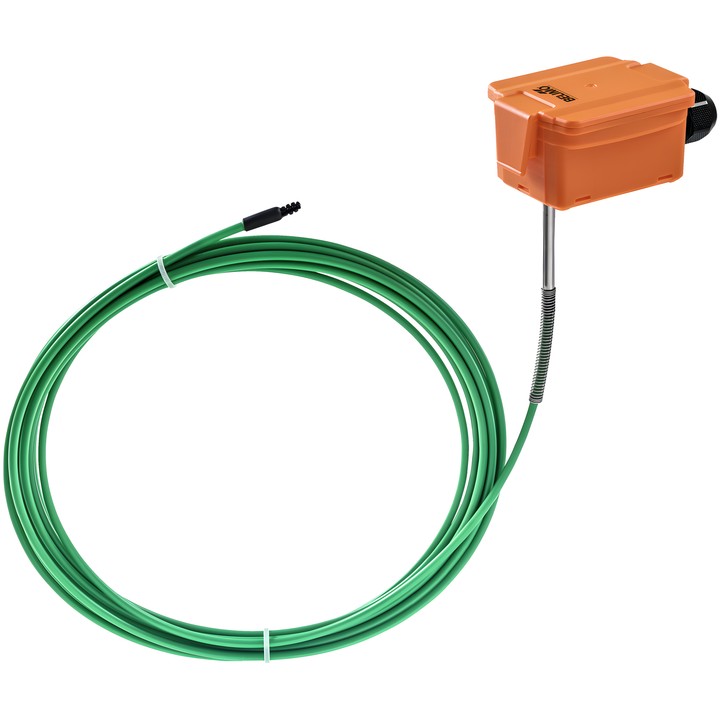

Belimo 01MT-1B5 - passive averaging temperature sensor

Belimo 01MT-1B5 - passive averaging temperature sensor

Belimo
zł677.42
VAT included
zł550.75 tax excluded

Passive averaging temperature sensor for measuring air temperature. Pt1000 output; probe length 6 m.

IP65 / NEMA 4X protection rating. Connection via plug-in spring terminal block, max. 2.5 mm².

Delivery in approx. 14 days
Share

Belimo 01MT-1B5 – averaging temperature sensor

Passive sensor for measuring air temperature. The Pt1000 version has one continuous sensing element along the entire probe length.

Key features

  • Output: Pt1000.
  • Probe length: 6 m.
  • Measuring range: -35...70°C [-30...160°F].
  • Temperature accuracy: Class B, ±0.3°C @ 0°C [±0.5°F @ 32° F].
  • Measuring current: <0.3 mA @ 0°C [32°F].
  • Protection rating: IP65 and NEMA 4X.
  • Electrical connection: plug-in spring terminal block, max. 2.5 mm²; cable gland with strain relief for cable ø6...8 mm.

The device is intended for fixed heating, ventilation and air conditioning installations. The package includes a mounting kit with 6 A-22D-A08 supports and an S housing mounting plate A-22D-A09.

  • Brand
    Belimo
  • Reference
    01MT-1B5
  • EAN13
    7630498117619

  • Electrical connection
    Terminals
  • Measured values
    Temperature
  • Output signal
    Pt1000
  • Passive temperature sensor output
    Pt1000
  • Probe length
    6 m

Techniczna karta katalogowa

Download (1.41MB)

Instrukcja montażu

Download (1.12MB)

Techniczna karta katalogowa – 01MT-1..

Download (1.41MB)

EU Declaration of Conformity – 01MT-1B5

Download (37.84KB)

Environmental Declaration – ..MT..

Download (69.98KB)
