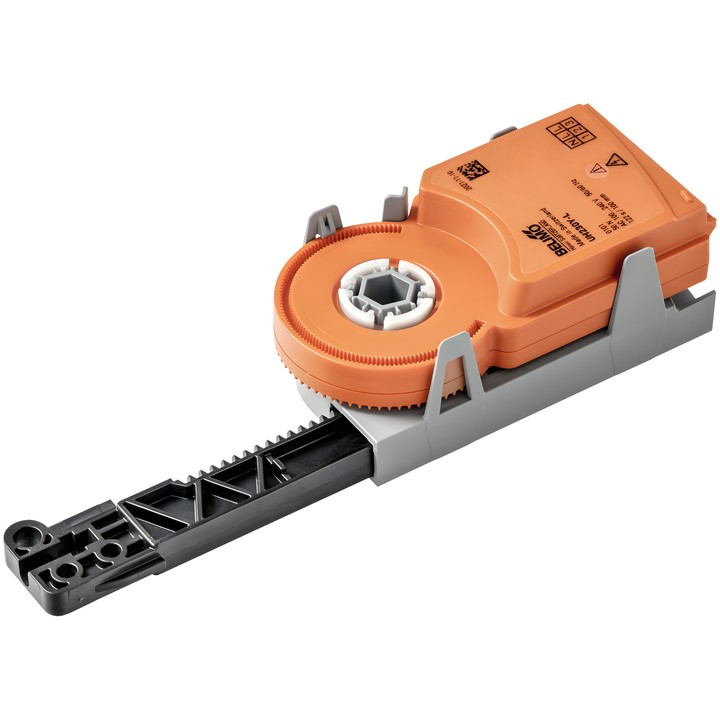

Belimo UH230Y-L.1 - 50 N linear actuator

Belimo UH230Y-L.1 - 50 N linear actuator

Belimo
zł523.98
VAT included
zł426.00 tax excluded

Belimo UH230Y-L.1 linear actuator with a force of 50 N, AC 100...240 V supply and Close/Open, 3-point control. Maximum stroke is 60 mm, and motor running time is 122 s / 100 mm.

Designed for factory installation in building services equipment. Pack of 40 pcs.

Product unavailable
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo UH230Y-L.1 linear actuator

Linear actuator for factory installation in building services equipment. The stroke can be adjusted in 1 mm increments, and mechanical end stops allow it to be limited at both ends within the range of 30...60 mm.

Key features and specifications

  • Motor force: 50 N.
  • Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
  • Control: Close/Open, 3-point.
  • Stroke: max. 60 mm, adjustable in 1 mm increments.
  • Motor running time: 122 s / 100 mm (74 s / 60 mm).
  • Power consumption during operation: 2 W; at rest: 1.5 W; for cable sizing: 4.5 VA.
  • Motor direction of travel is determined by the electrical installation; no manual override.
  • Connection: Molex Mini-Fit Jr. 39303035 plug. The mating cable-side connector is not included.
  • IEC/EN protection rating: IP20; ambient temperature: -30...50°C [-22...122°F].
  • Pack: 40 pcs.

  • Brand
    Belimo
  • Reference
    UH230Y-L.1
  • EAN13
    7630498122514

  • AC/DC voltage
    AC 100...240 V
  • Power consumption (running)
    2 W
  • Power consumption (holding)
    1.5 W
  • Rated power
    4.5 VA
  • Power supply control connection
    Connection plug (cable-side mating connector not included)
  • Control type
    Open/close, 3-point
  • Protection rating
    IP20
  • NEMA protection rating
    NEMA 1
  • Enclosure type
    UL Enclosure Type 1
  • Force
    50 N
  • Manual override
    No
  • Stroke
    60 mm
  • Running time (motor)
    122 s / 100 mm
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Connection plug
    Molex Mini-Fit Jr. 39303035 connector
  • Direction of movement - motor
    via electrical installation

Techniczna karta katalogowa

Download (1.25MB)

Instrukcja montażu

Download (187.56KB)

EU Declaration of Conformity – UH230Y-L.1

Download (308.67KB)

Environmental Declaration – UH..

Download (70.84KB)
