Belimo UM24Y-SR-L.1 - actuator for dampers with analogue control

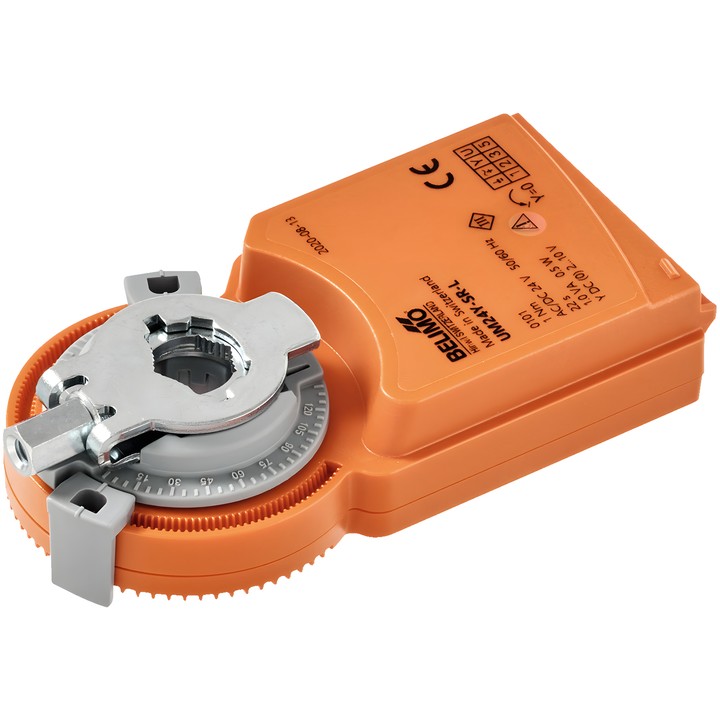

Belimo UM24Y-SR-L.1 damper actuator

Rotary actuator with analogue control, designed for factory installation in building services equipment. Documentation specifies use with air dampers with an area of up to approximately 0.2 m².

Key features and specifications

• Torque: 1 Nm; rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
• Operating range Y: 2...10 V; feedback signal U: 2...10 V.
• Motor running time: 22 s / 90°; angle of rotation: 95°; motor direction of rotation: counterclockwise (ccw).
• Power consumption during operation: 1.5 W; at rest: 0.5 W; for wire sizing: 2.5 VA.
• Mechanical connection: universal clamp 6...12.7 mm. Manual override: no.
• Electrical connection: Molex Mini-Fit Jr. 39303045 connection plug. The cable-side mating connector is not included in the scope of delivery.
• IEC/EN protection rating: IP20; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
• Ambient temperature: -30...50°C [-22...122°F].
• Pack: 100 pcs.

The actuator is mounted directly on the damper shaft. The Z-ARCM anti-rotation clip is not included in the scope of delivery.
