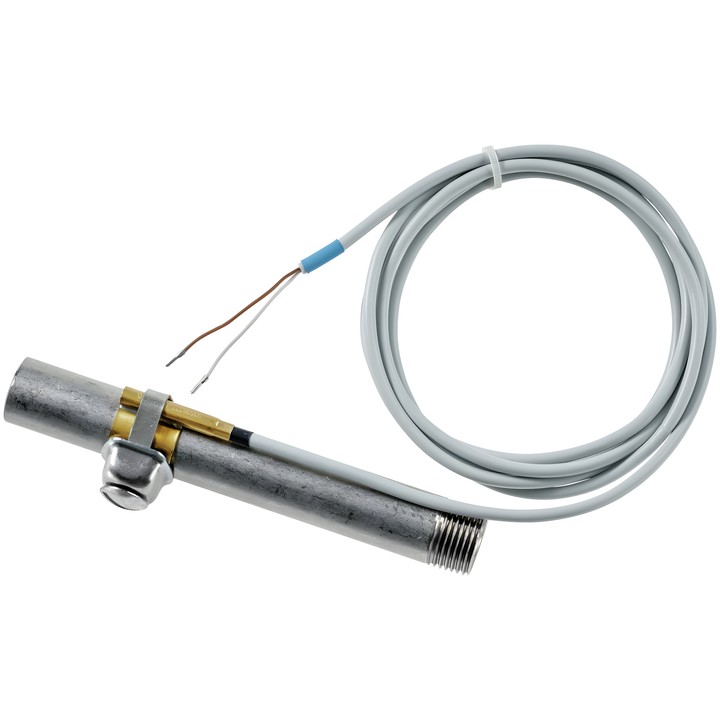

Belimo 01ST-1C3 - passive contact temperature sensor

Belimo 01ST-1C3 - passive contact temperature sensor

Belimo
zł70.48
VAT included
zł57.30 tax excluded

Belimo 01ST-1C3 passive contact temperature sensor for measuring temperature on pipes and curved surfaces. Ni1000 output signal, measuring range -35...100°C [-30...210°F].

Probe diameter 6 mm, cable 2 m, 2-wire. Supplied with a mounting strap for pipes ø20...110 mm [0.8...4.3"].

Delivery in approx. 14 days
Share

Belimo 01ST-1C3 contact temperature sensor

Passive sensor for measuring temperature on pipes and curved surfaces. The 01ST-1C3 model has a Ni1000 output signal, a brass probe and a PVC cable.

Key features

  • Measuring range: -35...100°C [-30...210°F].
  • Probe diameter: 6 mm.
  • Electrical connection: cable 2 m, 2-wire.
  • Measuring current for Ni1000: <0.3 mA @ 0°C [32°F].
  • Accuracy for Ni.. sensors: ±0.4°C @ 0°C [±0.7°F @ 32°F].
  • Time constant τ (63%) on a water pipe with contact fluid: typically 17 s.
  • IEC/EN protection rating: IP65.
  • Included: A-22P-A47 mounting strap for pipes ø20...110 mm [0.8...4.3"].

When measuring on a pipe surface, the influence of ambient temperature can be reduced by using contact fluid. A-22P-A44 contact fluid is an optional accessory.

  • Brand
    Belimo
  • Reference
    01ST-1C3
  • EAN13
    7630498100659

  • Electrical connection
    Cable
  • Measured values
    Temperature
  • Output signal
    Ni1000
  • Passive temperature sensor output
    Ni1000

Techniczna karta katalogowa

Download (948.77KB)

Instrukcja montażu

Download (398.39KB)

Techniczna karta katalogowa – 01ST-1..

Download (941.24KB)

Environmental Declaration – 01ST..

Download (71.72KB)
