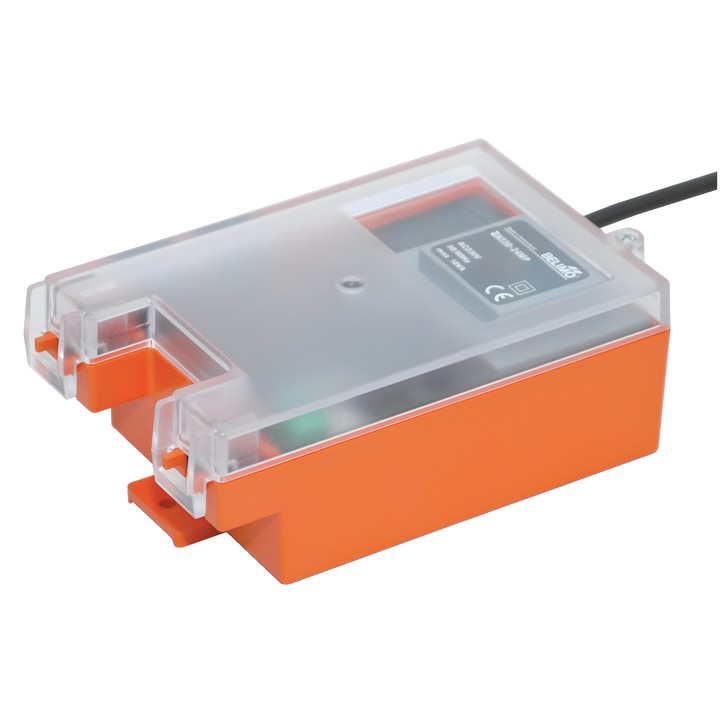

Belimo ZN230-24MP - MP-Bus power supply for MP actuators

Name: Belimo ZN230-24MP - MP-Bus power supply for MP actuators
Brand: Belimo
SKU: ZN230-24MP
Price: 1755.21 PLN
Availability: OutOfStock

Belimo

zł1,755.21

VAT included

zł1,427.00 tax excluded

Power supply for local power supply of MP actuators in 2-wire MP-Bus networks. Input supply AC 230 V, 50/60 Hz; output AC 24 V.

Allows connection of one MP actuator and a sensor, or two MP actuators. Includes a socket for connecting PC-Tool and ZTH EU parameterisation tools.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo ZN230-24MP power supply

ZN230-24MP provides local power to MP actuators operating in a 2-wire MP-Bus network. The device is intended for stationary heating, ventilation and air conditioning installations.

Main features and specifications

Rated voltage: AC 230 V, 50/60 Hz; rated voltage range: AC 198 ... 264 V.
Local power supply for MP actuators: AC 24 V; power consumption during operation: 11 W; for cable sizing: 13VA; secondary output power consumption: Max. 10VA.
One MP actuator and a sensor can be connected with jumper S1 fitted, or two MP actuators with jumper S1 removed.
Mains connection via a 0,9 m cable with a type 26 Euro plug; MP-Bus connection via a 2-pin screw terminal.
Socket for connecting PC-Tool and ZTH EU parameterisation tools. When a tool is connected, communication with the MP network is disconnected.
Ambient temperature: -20 … 50 °C; protection class: II, fully insulated.

ZTH EU can only be connected when one actuator is connected to the power supply.
