Belimo 22ADP-124D - dual air differential pressure sensor

Belimo 22ADP-124D - dual air differential pressure sensor

Belimo
zł1,259.21
VAT included
zł1,023.75 tax excluded

Dual air differential pressure sensor with two independent measuring systems. Measuring range -100...2500 Pa, with 8 selectable ranges for each system and output signals of 0...5 V or 0...10 V.

AC/DC 24 V supply, IP65 / NEMA 4X protection rating. Supplied with mounting plate, mounting hardware, 4 plastic duct connections and 2x 2 m PVC tubing.

Delivery in approx. 14 days
Share

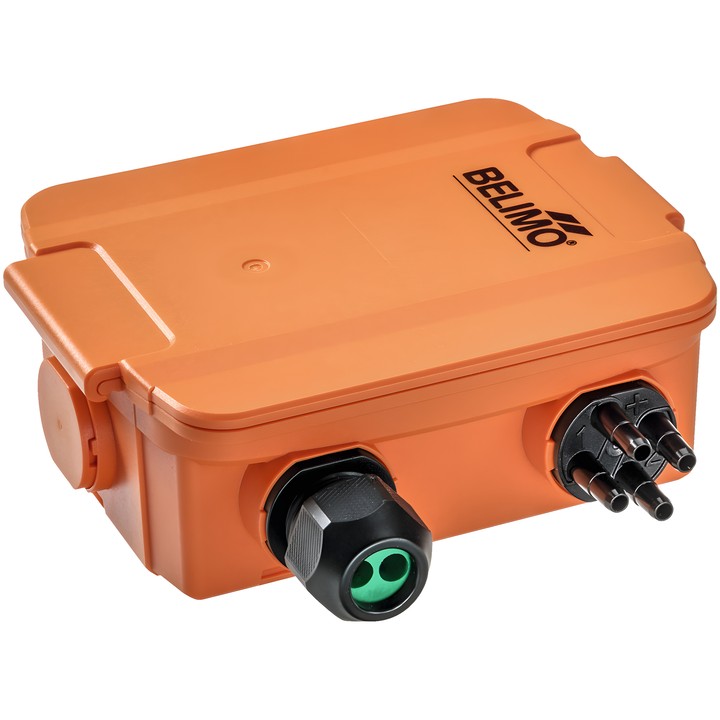

Belimo 22ADP-124D dual differential pressure sensor

The device has two independent systems for measuring the differential pressure of air and other non-flammable, non-aggressive gases. It is designed for stationary heating, ventilation and air conditioning installations. The documentation lists monitoring air filters, fan V-belts, and fire and smoke dampers as typical applications.

Key features

  • Measuring range: -100...2500 Pa (-0.4...10 inch WC); 8 selectable ranges for each measuring system.
  • Output signal: 2 x 0...5 V, 0...10 V, min. resistance 10 kΩ; 0...5/10 V selection by switch.
  • Nominal voltage: AC/DC 24 V.
  • Typical response time: adjustable, 0.8 s or 4.0 s.
  • Measuring element: piezoelectric; bursting pressure: 40 kPa.
  • Electrical connection: plug-in terminal strip with spring terminals, max. 2.5 mm².
  • Protection rating: IP65 / NEMA 4X.

The package includes a mounting plate, plugs and screws, plus 4 plastic duct connections and 2x 2 m PVC tubing. The 22ADP-124D version has no display.

  • Brand
    Belimo
  • Reference
    22ADP-124D
  • EAN13
    7630498100796

  • Electrical connection
    Terminals
  • Measured values
    Differential pressure
  • Output signal
    0...5 V 0...10 V
  • Pressure measuring range
    -100...2500 Pa | -0.4...10 inch WC
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V selectable by switch
  • Output voltage range [Range]
    2 x 0...5 V, 0...10 V, min. resistance 10 kΩ

Techniczna karta katalogowa

Download (3.4MB)

Instrukcja montażu

Download (993.72KB)

Techniczna karta katalogowa – 22ADP-124..

Download (3.4MB)

EU Declaration of Conformity – 22ADP-124D

Download (38.07KB)

Environmental Declaration – 22ADP..

Download (72.08KB)
