Belimo 22ADP-124F - dual air differential pressure sensor

Belimo 22ADP-124F - dual air differential pressure sensor

Belimo
zł1,702.94
VAT included
zł1,384.50 tax excluded

Dual air differential pressure sensor with two independent measuring systems and an LCD. Measuring range -100...2500 Pa, with 8 selectable ranges for each system and output signals of 0...5 V or 0...10 V.

Power supply AC/DC 24 V, enclosure protection rating IP65 / NEMA 4X.

Delivery in approx. 14 days
Share

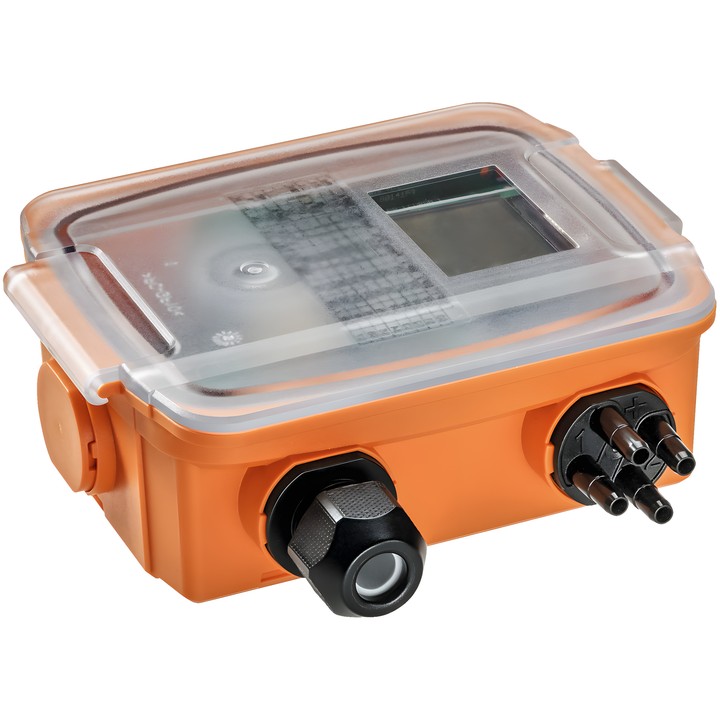

Belimo 22ADP-124F

Dual differential pressure sensor for monitoring the differential pressure of air and other non-flammable, non-aggressive gases. It has two independent measuring systems. Typical HVAC applications include monitoring air filters, fan belts, and fire and smoke dampers.

Key features

  • Measuring range: -100...2500 Pa; 8 selectable ranges for each measuring system.
  • Voltage output: 2 x 0...5 V, 0...10 V, min. resistance 10 kΩ; 0...5/10 V signal selectable by switch.
  • Nominal voltage: AC/DC 24 V.
  • Backlit LCD; display units Pa and inch WC are configurable.
  • Typical response time: adjustable 0.8 s or 4.0 s.
  • Electrical connection: pluggable terminal block with spring terminals, max. 2.5 mm².
  • Protection rating: IP65 / NEMA 4X.

The scope of delivery includes a mounting plate, plugs and screws, and connection components: 4 plastic duct connectors and 2 lengths of PVC tubing, each 2 m long.

  • Brand
    Belimo
  • Reference
    22ADP-124F
  • EAN13
    7630498100802

  • Electrical connection
    Terminals
  • Measured values
    Differential pressure
  • Output signal
    0...5 V 0...10 V
  • Pressure measuring range
    -100...2500 Pa | -0.4...10 inch WC
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V selectable by switch
  • Display type
    LCD
  • Output voltage range [Range]
    2 x 0...5 V, 0...10 V, min. resistance 10 kΩ
