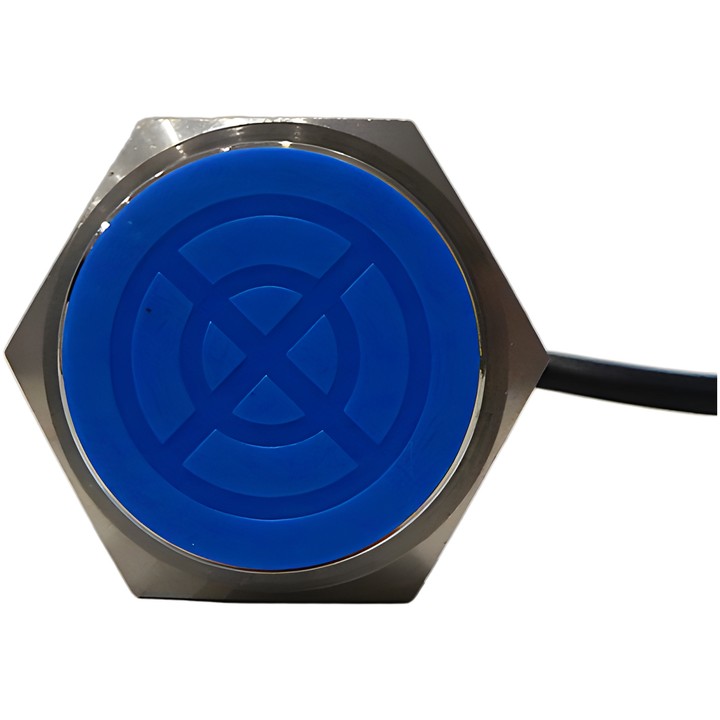

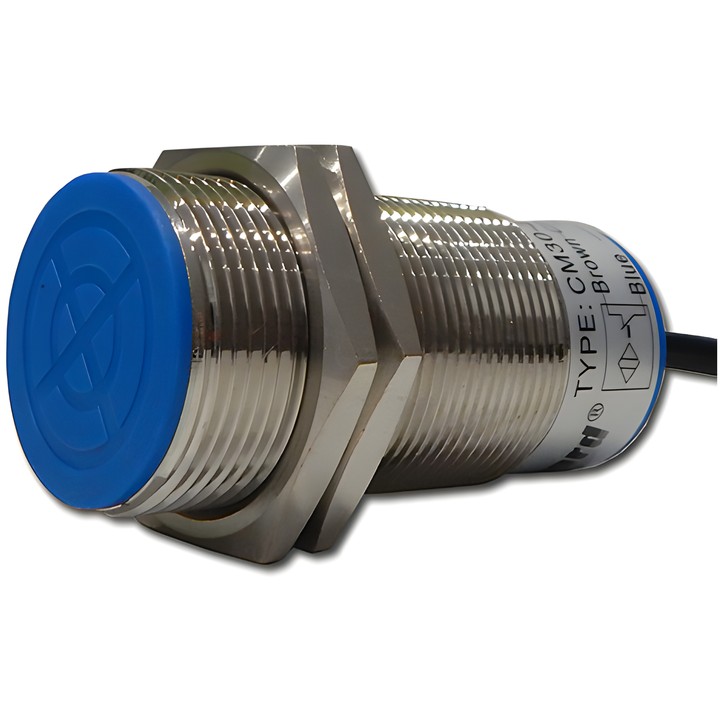

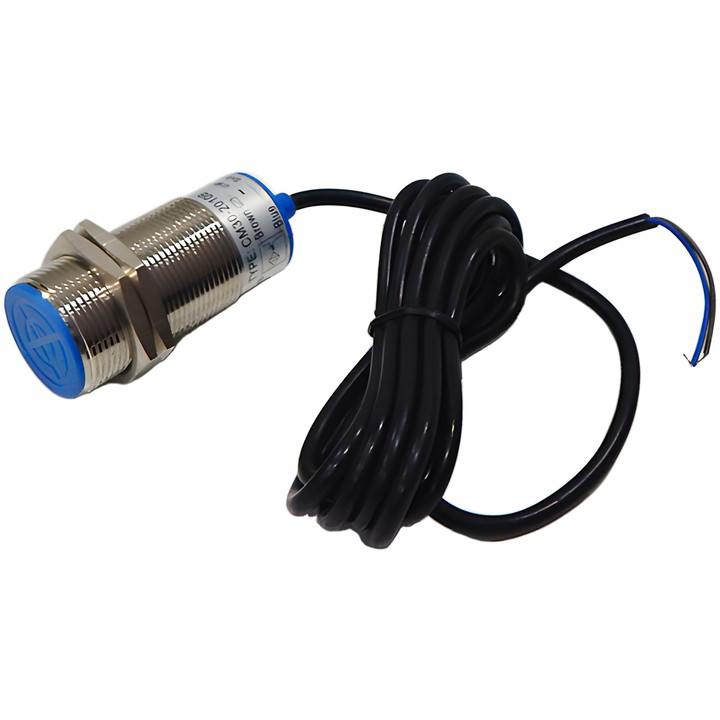

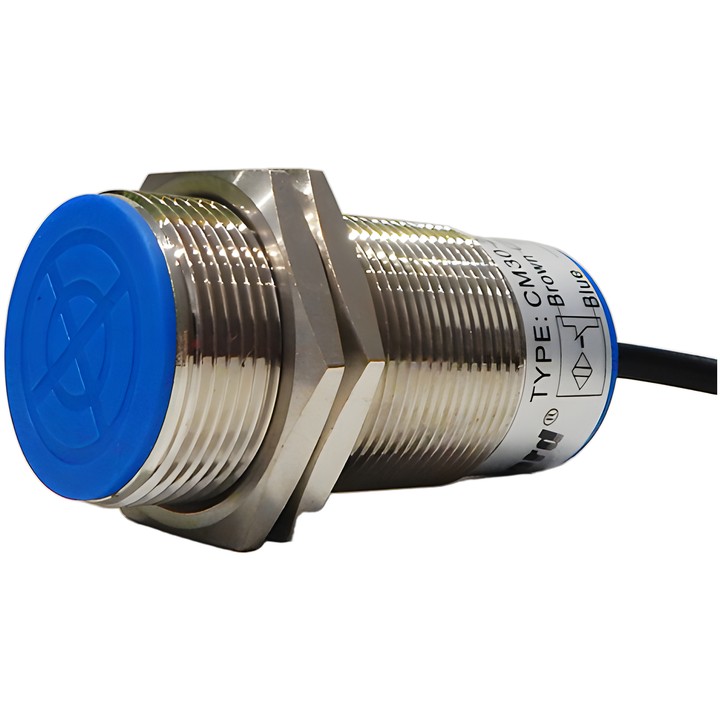

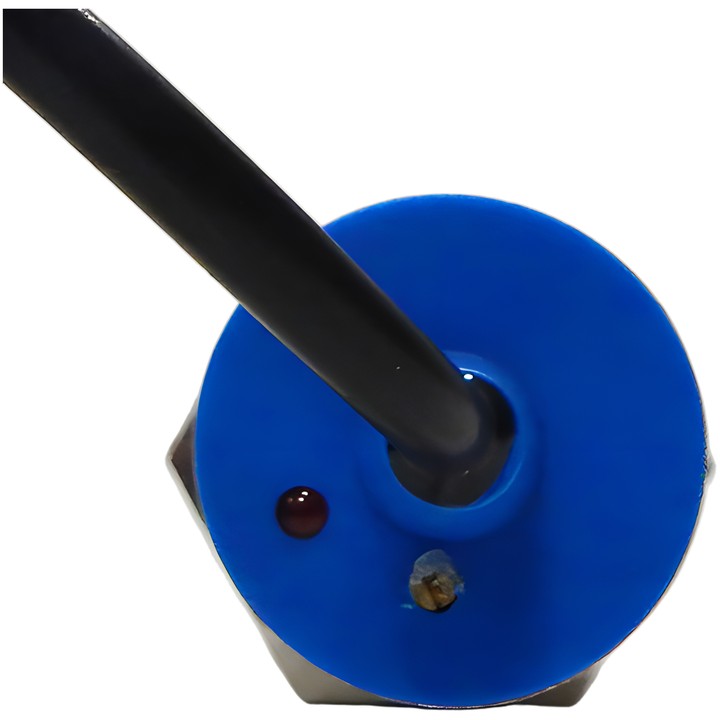

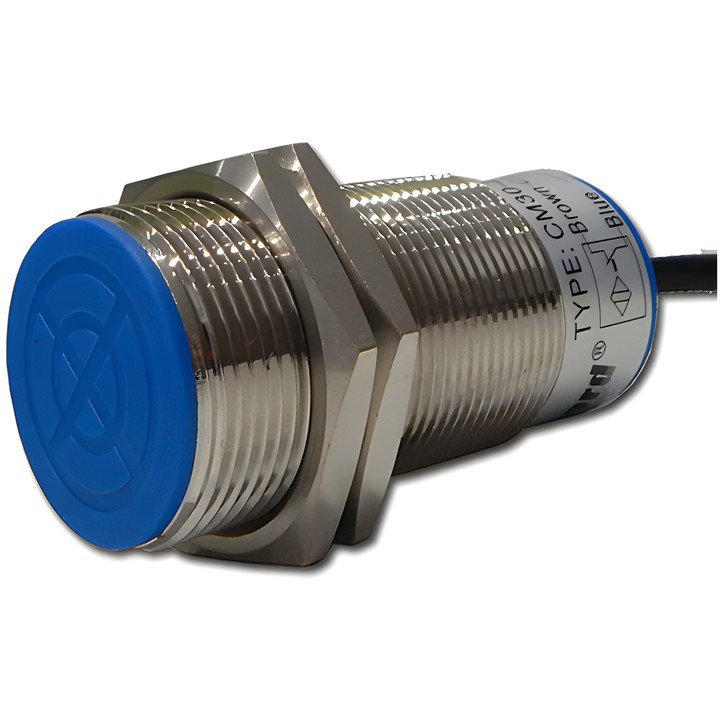

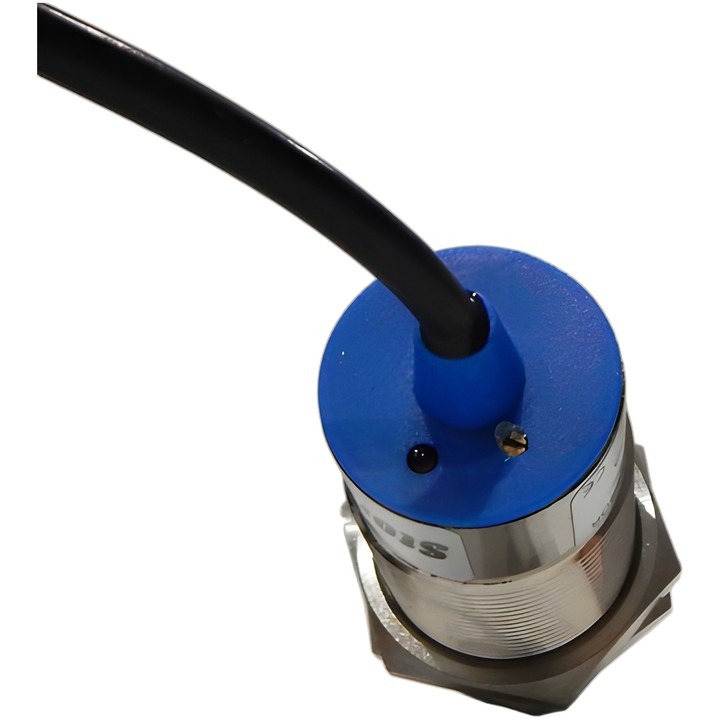

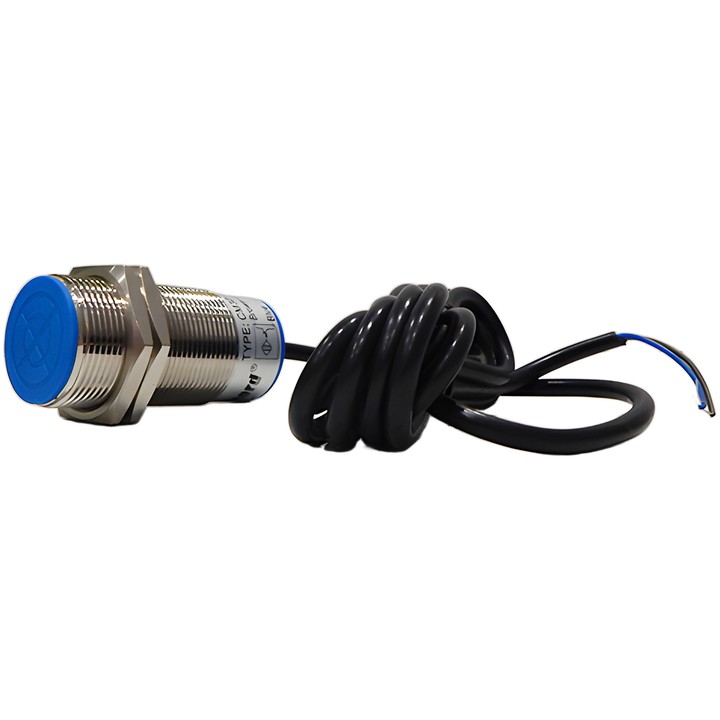

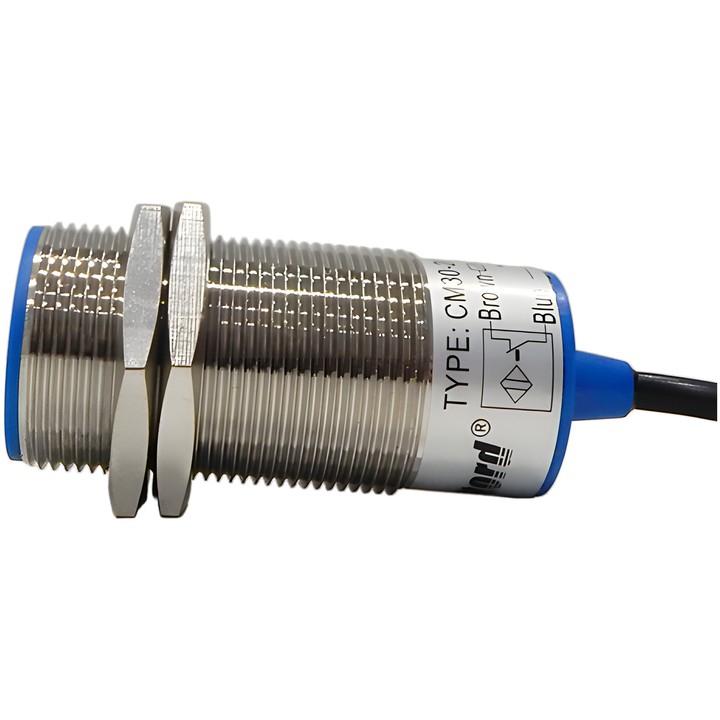

Stord CM30-2010B images
Stord CM30-2010B
Price:
zł113.00
VAT included
zł91.87 tax excluded
Capacitive sensor with a sensing range of up to 10 mm, diameter M30X1.5, 2-wire, with NC output.
| Operating range: | 0-10 mm |
| Housing diameter: | M30X1.5 |
| Supply voltage: | 90~250V AC |
| Output type: | 2-wire |
| Output state: | NC |
| Maximum output current: | 300mA AC |
| Switching frequency: | max 10Hz |
| Sensing face type: | retracted |
| Protection rating: | IP 54 |
| Insulation resistance: | 50MΩ |
| Current consumption: | <10 mA |
| Operating temperature: | -25°C / +70°C |
| Voltage drop: | <7V |
| Housing: | metal/ABS |
| Sensor length: | 68 mm |
| Power cable length: | 2000 mm |
| Weight: |
-
Brand
-
ReferenceCM30-2010B
-
Supply voltage90~250V AC
-
Product typeSensors
-
Maximum output current300 mA AC
-
Operating range0-10 mm
-
Output statusNC
