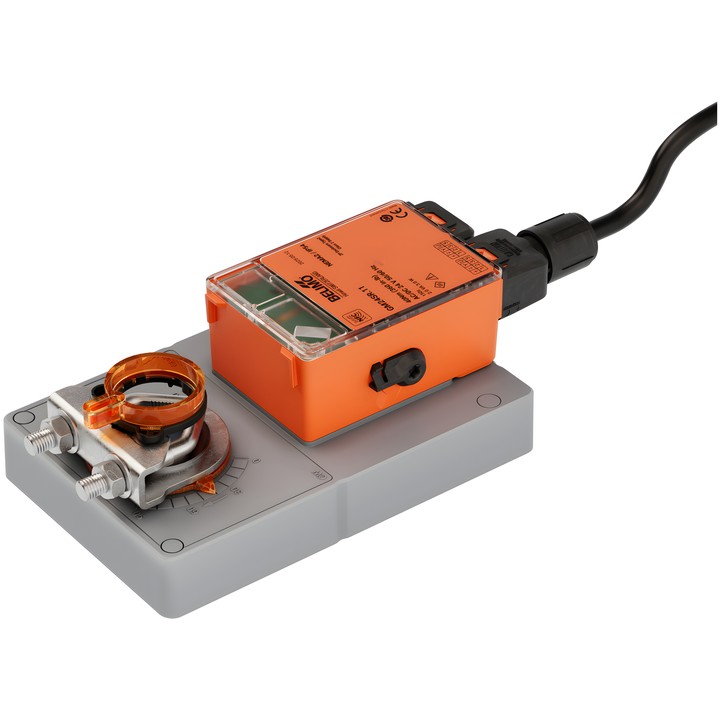

Belimo GM24.13 - damper actuator without spring return

Name: Belimo GM24.13 - damper actuator without spring return
Brand: Belimo
SKU: GM24.13
Price: 1114.02 PLN
Availability: BackOrder

Belimo

zł1,114.02

VAT included

zł905.71 tax excluded

Belimo GM24.13 damper actuator with 40 Nm torque, powered by AC/DC 24 V. Open/close or 3-point control; rotation time 150 s / 90°.

Features a detachable connection cable, manual adjustment by lever and an NFC interface for configuration using Belimo Assistant 2.

Delivery in approx. 14 days

Belimo GM24.13 damper actuator

Actuator designed to control dampers in technical building systems. This model has no spring return and supports open/close and 3-point control.

Key features and specifications

Motor torque: 40 Nm; rated voltage: AC/DC 24 V, 50/60 Hz.
Motor rotation time: 150 s / 90°; adjustable rotation time: 90...150 s.
Rotation angle: max. 95°; electronic limitation on both sides is possible using Belimo Assistant 2.
Motor rotation direction: clockwise (cw); direction can be selected using Belimo Assistant 2.
Universal, reversible shaft clamp for 12...26.7 mm and mechanical position indication.
Manual adjustment using a side lever with locking option.
Detachable FRNC (halogen-free) connection cable, 1 m, 3x 0.5 mm² [21 AWG].
NFC interface and green LED indicating operating status.
Power consumption during operation: 2 W; in idle position: 0.2 W; for cable sizing: 5 VA.
IEC/EN degree of protection: IP54; IEC/EN protection class: III, Protective Extra-Low Voltage (PELV).
