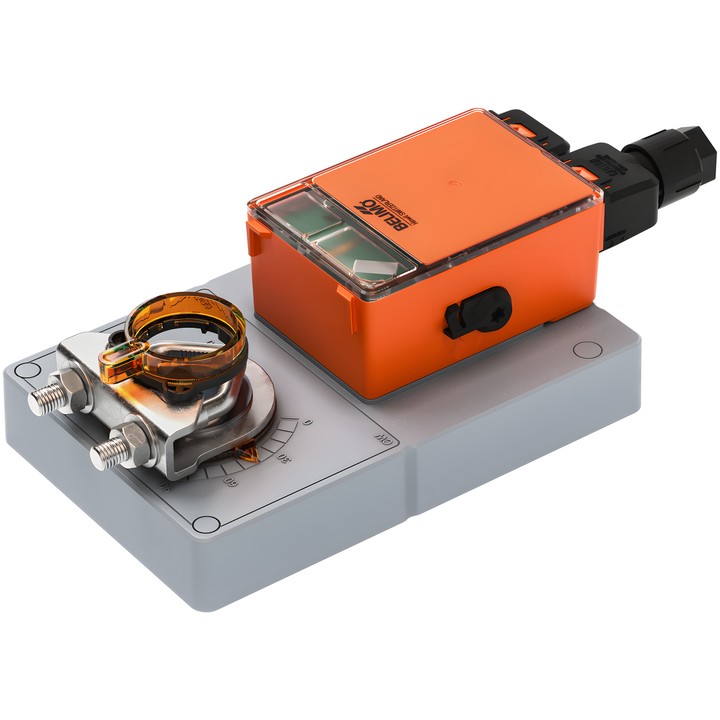

Belimo GM24.19 - 40 Nm damper actuator

Name: Belimo GM24.19 - 40 Nm damper actuator
Brand: Belimo
SKU: GM24.19
Price: 1114.02 PLN
Availability: BackOrder

Belimo

zł1,114.02

VAT included

zł905.71 tax excluded

Belimo GM24.19 damper actuator for heating, ventilation and air conditioning systems. AC/DC 24 V supply, 40 Nm torque and open/close or 3-point control.

Running time is 150 s / 90°. The device has a universal 12...26.7 mm shaft clamp, manual adjustment by lever and an NFC interface for configuration with Belimo Assistant 2.

Delivery in approx. 14 days

Belimo GM24.19 damper actuator

The GM24.19 model is used to position dampers in stationary heating, ventilation and air conditioning systems. It is controlled in open/close or 3-point mode.

Key features and specifications

Motor torque: 40 Nm.
Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
Rated voltage range: AC 19.2...28.8 V / DC 19.2...28.8 V.
Motor running time: 150 s / 90°; adjustable running time: 90...150 s.
Rotation angle: max. 95°; electronic limitation on both sides is possible using Belimo Assistant 2.
Motor direction of rotation: clockwise (cw); selectable using Belimo Assistant 2.
Universal, reversible shaft clamp: 12...26.7 mm.
Manual adjustment using a side lever, with locking capability.
Plug-in spring terminals; green LED indicating operating status.
NFC interface and parameter configuration using Belimo Assistant 2.
Power consumption during operation: 2 W; at rest: 0.2 W; for cable sizing: 5 VA.
IEC/EN protection rating: IP54; IEC/EN protection class: III, Protective Extra-Low Voltage (PELV).
