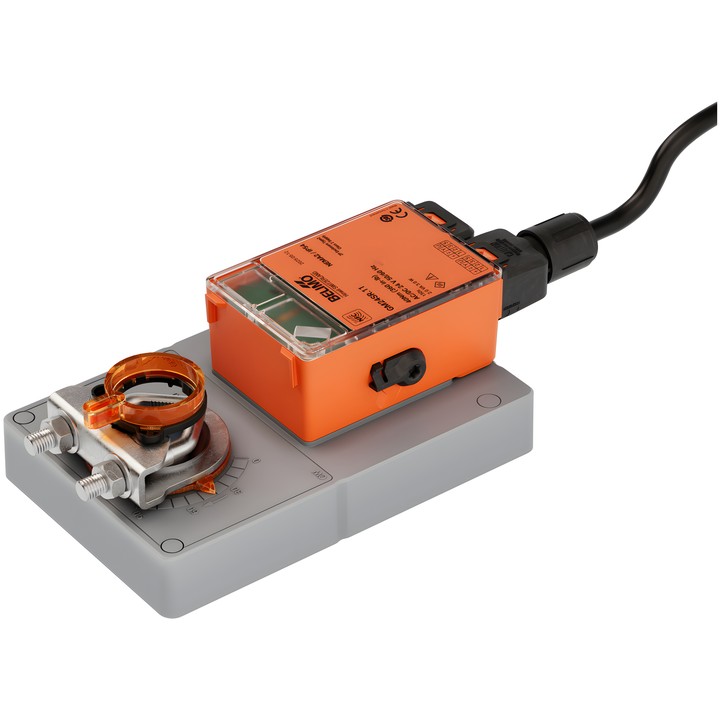

Belimo GM24SR.12 - 40 Nm damper actuator

Name: Belimo GM24SR.12 - 40 Nm damper actuator
Brand: Belimo
SKU: GM24SR.12
Price: 1326.19 PLN
Availability: BackOrder

Belimo

zł1,326.19

VAT included

zł1,078.20 tax excluded

Belimo GM24SR.12 damper actuator for stationary heating, ventilation and air conditioning systems. Torque 40 Nm, AC/DC 24 V power supply and 150 s / 90° running time.

Supports modulating, open/close, 3-point control and MP-Bus communication. Features a universal shaft clamp for 12...26.7 mm, manual override and an NFC interface for configuration using Belimo Assistant 2.

Delivery in approx. 14 days

Belimo GM24SR.12 damper actuator

The GM24SR.12 is an actuator for positioning dampers in stationary heating, ventilation and air conditioning systems. It can operate with an analogue control signal Y or receive a digital signal via MP-Bus.

Key features and specifications

Motor torque: 40 Nm; nominal supply: AC/DC 24 V, 50/60 Hz.
Modulating, open/close, 3-point or MP-Bus communication control; maximum 16 MP-Bus nodes.
Operating range Y: 2...10 V; position feedback signal U: 2...10 V.
Running time: 150 s / 90°; adjustable running-time range: 90...150 s.
Rotation angle: max. 95°; electronic limitation on both sides available using Belimo Assistant 2.
Universal, reversible shaft clamp: 12...26.7 mm; manual override with locking side lever.
Detachable 1 m connection cable, FRNC (halogen-free); IEC/EN IP54 degree of protection.
NFC interface for configuring parameters using Belimo Assistant 2 and a green LED indicating operating status.
Power consumption during operation: 2 W; at rest: 0.2 W.
