Belimo GMC230.2A - 40 Nm damper actuator

Name: Belimo GMC230.2A - 40 Nm damper actuator
Brand: Belimo
SKU: GMC230.2A
Price: 2686.32 PLN
Availability: OutOfStock

Belimo

zł2,686.32

VAT included

zł2,184.00 tax excluded

Belimo GMC230.2A damper actuator for stationary heating, ventilation and air conditioning installations. Torque 40 Nm, rated voltage AC 100...240 V, and open/close or 3-point control.

Running time is 35 s / 90° and can be adjusted within 35...150 s. The actuator has a detachable connecting cable, an LED status indicator and an NFC interface for configuration using Belimo Assistant 2.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

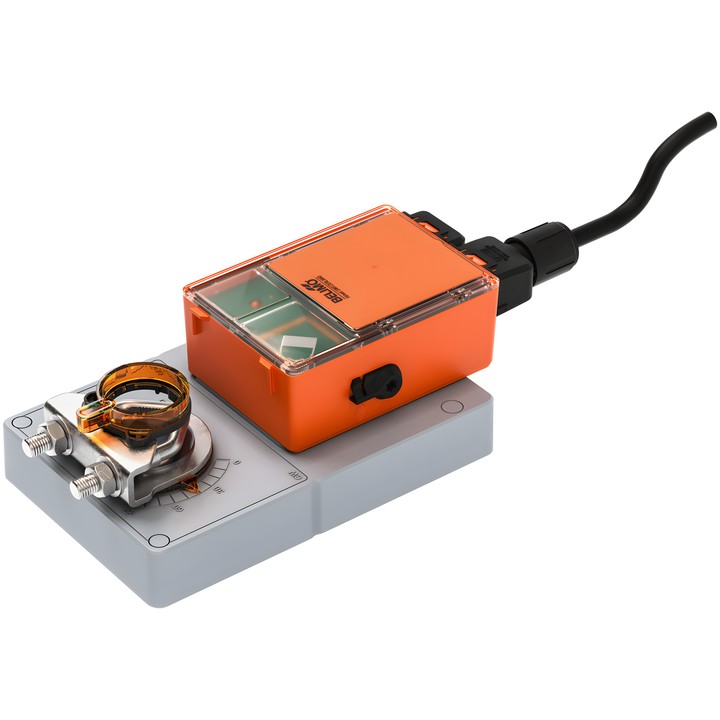

Belimo GMC230.2A damper actuator

The actuator is used to position dampers in stationary heating, ventilation and air conditioning installations. It is mounted directly on the damper shaft using a universal, reversible clamp.

Key features and specifications

Torque: 40 Nm.
Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
Control: open/close, 3-point.
Running time: 35 s / 90°; adjustable running time: 35...150 s.
Maximum angle of rotation: 95°; can be electronically limited on both sides using Belimo Assistant 2.
Motor direction of rotation: clockwise (cw); can be changed using Belimo Assistant 2.
Universal, reversible shaft clamp: 12...26.7 mm.
Detachable power and control cable: FRNC (halogen-free), 1 m, 3x 0.75 mm² [19 AWG].
Manual adjustment using a side lever with locking option.
Green LED indicating operating status; NFC interface for changing parameters using Belimo Assistant 2.
Power consumption during operation: 5.5 W; at rest: 0.6 W; for cable sizing: 13 VA.
Degree of protection IEC/EN: IP54; protection class IEC/EN: II, reinforced insulation.
