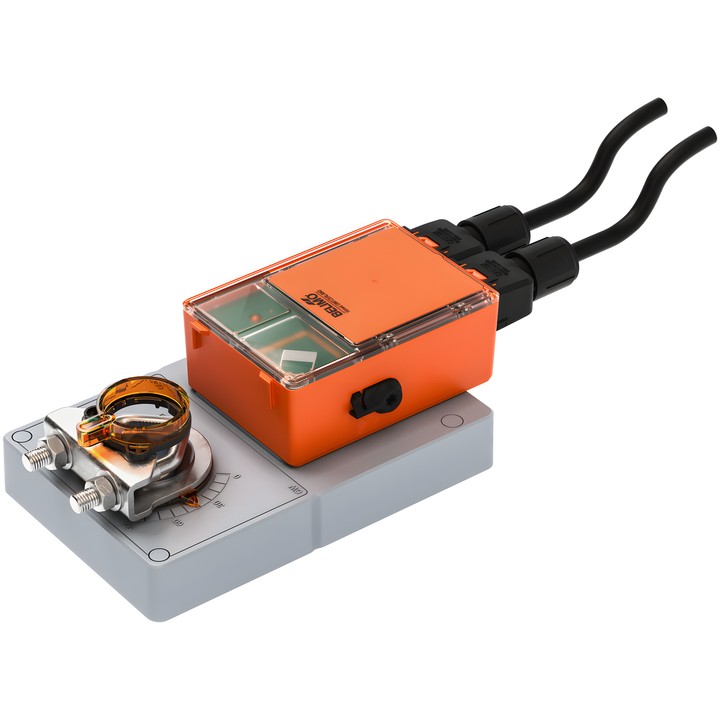

Belimo GMC230S.2A - 40 Nm damper actuator

Belimo GMC230S.2A damper actuator

Actuator designed to position dampers in stationary heating, ventilation and air conditioning installations. Supports open/close or 3-point control. Device parameters can be changed via NFC using Belimo Assistant 2.

Key features and specifications

• Motor torque: 40 Nm; direction of rotation: clockwise (cw), selectable using Belimo Assistant 2.
• Rated voltage: AC 100...240 V; frequency: 50/60 Hz; voltage range: AC 85...265 V.
• Power consumption during operation: 5.5 W; in rest position: 0.6 W; for cable sizing: 13 VA.
• Motor running time: 35 s / 90°; adjustable running time: 35...150 s.
• Maximum rotation angle: 95°; electronic limitation on both sides available using Belimo Assistant 2.
• 2 integrated auxiliary switches 2x SPST (Single Pole, Single Throw); switching points S1/S2: 10% / S4/S5: 90%, configurable using Belimo Assistant 2.
• Universal reversible shaft clamp, range 12...26.7 mm; manual override with side lever that can be locked.
• Detachable FRNC (halogen-free) connection cables: power/control 1 m 3x 0.75 mm² [19 AWG] and auxiliary switches 1 m 4x 0.75 mm² [19 AWG].
• Green LED indicating operating status and NFC interface.
• IEC/EN IP54 protection rating; IEC/EN protection class II, reinforced insulation.
