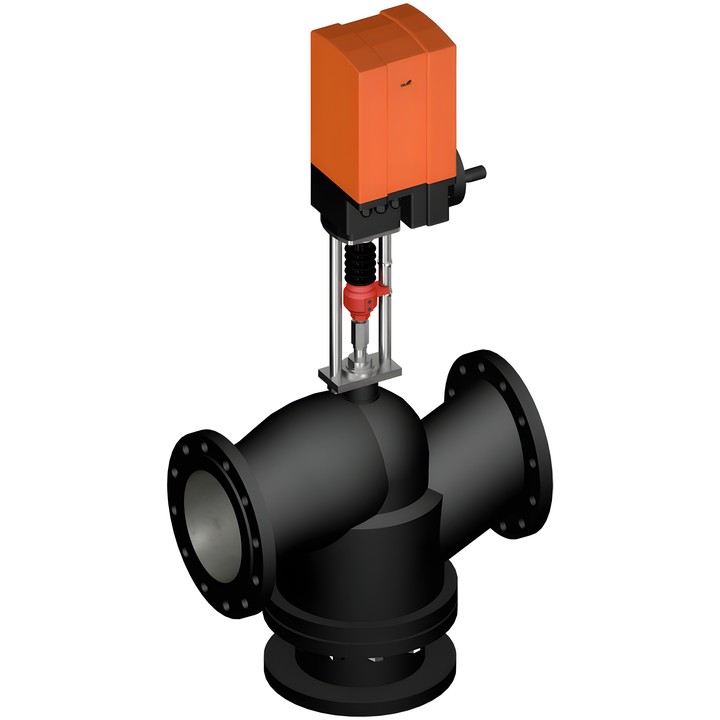

Belimo H7250+GV1224SRT - three-way globe valve with actuator

Name: Belimo H7250+GV1224SRT - three-way globe valve with actuator
Brand: Belimo
SKU: H7250+GV1224SRT
Price: 161136.15 PLN
Availability: OutOfStock

Belimo

zł161,136.15

VAT included

zł131,005.00 tax excluded

The Belimo H7250+GV1224SRT three-way globe valve with actuator is intended for closed water systems and water-side control in ventilation and heating systems. The source description specifies a flanged connection, Kvs 1000 m³/h and 1600 kPa.

The technical data sheet covers the H7..W..-S7 series, not SKU H7250+GV1224SRT directly; its parameters must not be treated as a confirmed specification for this assembly.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo H7250+GV1224SRT

Three-way globe valve with actuator. The supplied technical data sheet describes the H7..W..-S7 valve series, so the individual type data stated in it are not automatically specifications for the H7250+GV1224SRT assembly.

Data stated for the product

Type: three-way globe valve with actuator.
Connection: flanged.
Kvs: 1000 m³/h.
The source description also states 1600 kPa, without specifying the type of pressure.

Information from the H7..W..-S7 series data sheet

The series valves are intended for closed water systems and water-side control in ventilation and heating systems.
The series data sheet specifies the medium as water or water with glycol up to max. 50% by volume.
Stem heating is required at a medium temperature of -10...2°C.
Permitted installation for the series valves: from vertical to horizontal relative to the stem; installation with the stem pointing downwards is not permitted.
Maximum differential pressure and closing pressure depend on the actuator fitted.

Series parameters must be confirmed for the specific H7250+GV1224SRT configuration.
