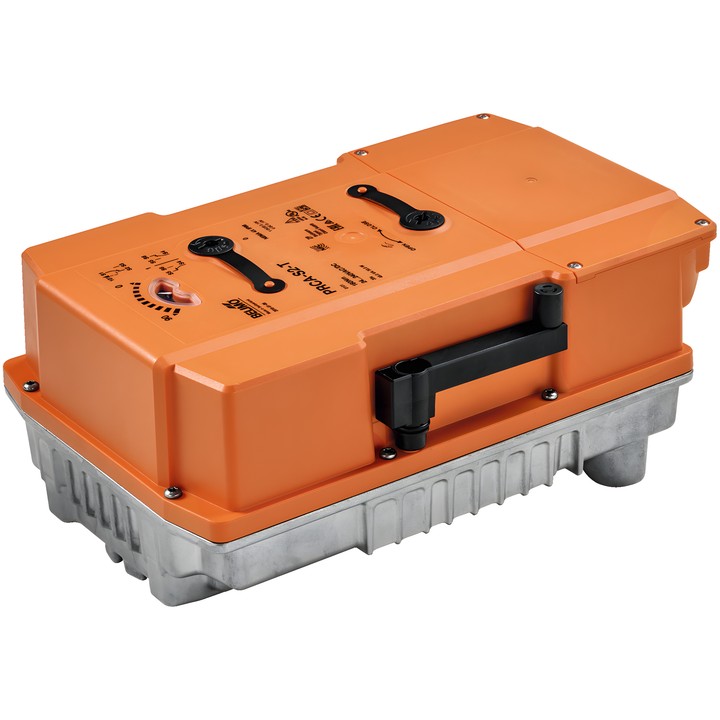

Belimo PRCA-BAC-S2T200 - rotary actuator for dampers

Name: Belimo PRCA-BAC-S2T200 - rotary actuator for dampers
Brand: Belimo
SKU: PRCA-BAC-S2T200
Price: 11602.59 PLN
Availability: OutOfStock

Belimo

zł11,602.59

VAT included

zł9,433.00 tax excluded

Belimo rotary actuator for dampers with a torque of 160 Nm. Supply voltage AC 24...240 V / DC 24...125 V; modulating, communicative or hybrid control.

Supports BACnet MS/TP, Modbus RTU and MP-Bus. Features 2 integrated SPDT auxiliary switches, manual adjustment by crank and IP66/67 protection rating.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo PRCA-BAC-S2T200 rotary actuator

Actuator for dampers, designed for use in stationary heating, ventilation and air-conditioning systems. Enables modulating, communicative and hybrid control, as well as sensor signal conversion.

Key features and specifications

Motor torque: 160 Nm.
Rated voltage: AC 24...240 V / DC 24...125 V; frequency 50/60 Hz.
Power consumption: 20 W during operation and 6 W in the resting position.
Motor running time: 35 s / 90°; adjustable range 30...120 s.
Control range Y: 2...10 V; position feedback signal U: 2...10 V.
Communication: BACnet MS/TP, Modbus RTU, MP-Bus.
Two SPDT auxiliary switches: 1x 10° / 1x 0...90° (default setting 85°).
Supports connection of two passive or active sensors or switching contacts, and transmission of sensor signals via BACnet or Modbus.
Manual adjustment by crank and integrated mechanical position indicator.
Internal heater limits condensation and is controlled automatically based on temperature and humidity.
Parameter configuration via Belimo Assistant 2 using NFC or a wired connection.
IEC/EN IP66/67 protection rating; IEC/EN protection class I, protective earth (PE); ambient temperature -30...50°C.

Type designation in the technical datasheet: PRCA-BAC-S2-T-200.
