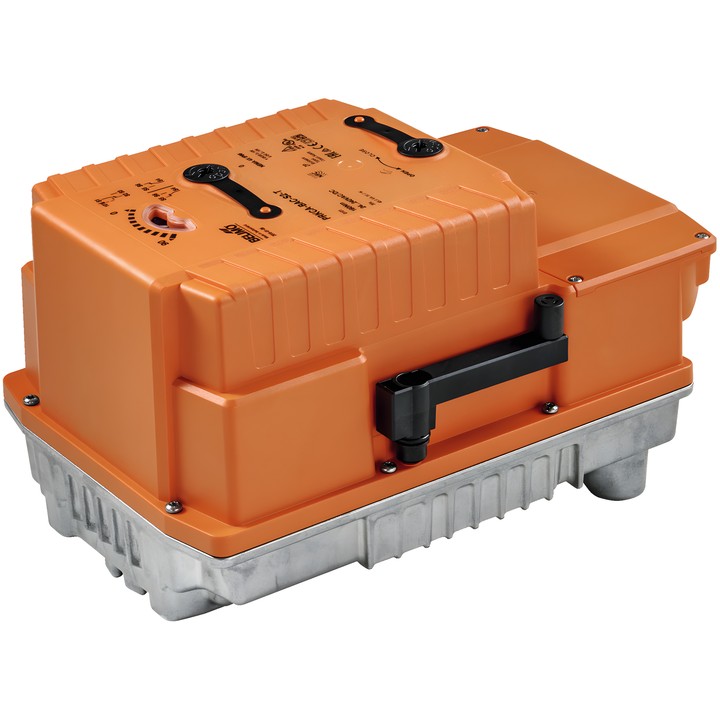

Belimo PRKCA-BACS2T250 - safety function rotary actuator for dampers

Name: Belimo PRKCA-BACS2T250 - safety function rotary actuator for dampers
Brand: Belimo
SKU: PRKCA-BACS2T250
Price: 18372.51 PLN
Availability: OutOfStock

Belimo

zł18,372.51

VAT included

zł14,937.00 tax excluded

Belimo PRKCA-BACS2T250 rotary actuator for dampers, with an electronic safety function and torque of 160 Nm. Power supply AC 24...240 V / DC 24...125 V; modulating, communicative or hybrid control.

Supports BACnet MS/TP, Modbus RTU and MP-Bus. Equipped with 2x SPDT and a crank for manual adjustment.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo PRKCA-BACS2T250 rotary actuator

This actuator with an electronic safety function is designed for dampers. In the event of a power failure, it can move the valve to the set safety position. It enables modulating, communicative and hybrid control.

Key features and specifications

Motor torque: 160 Nm.
Rated voltage: AC 24...240 V / DC 24...125 V; frequency: 50/60 Hz.
Communication: BACnet MS/TP, Modbus RTU, MP-Bus.
Operating range Y: 2...10 V; position feedback signal U: 2...10 V.
Motor running time: 35 s / 90°; safety function running time: 30 s / 90°.
Safety position: 0...100%, adjustable using the Belimo Assistant App; default setting 0%.
Two integrated auxiliary switches: 2x SPDT, 1x 10° / 1x 0...90° (default setting 85°).
Connection of two sensors and conversion of their signals are possible.
Integrated heater to prevent condensation; mechanical position indicator and manual adjustment by crank.
IEC/EN ingress protection rating: IP66/67; IEC/EN protection class: I, protective earth (PE).

Configuration via NFC requires Belimo Assistant 2. The actuator is designed for stationary heating, ventilation and air-conditioning installations.
