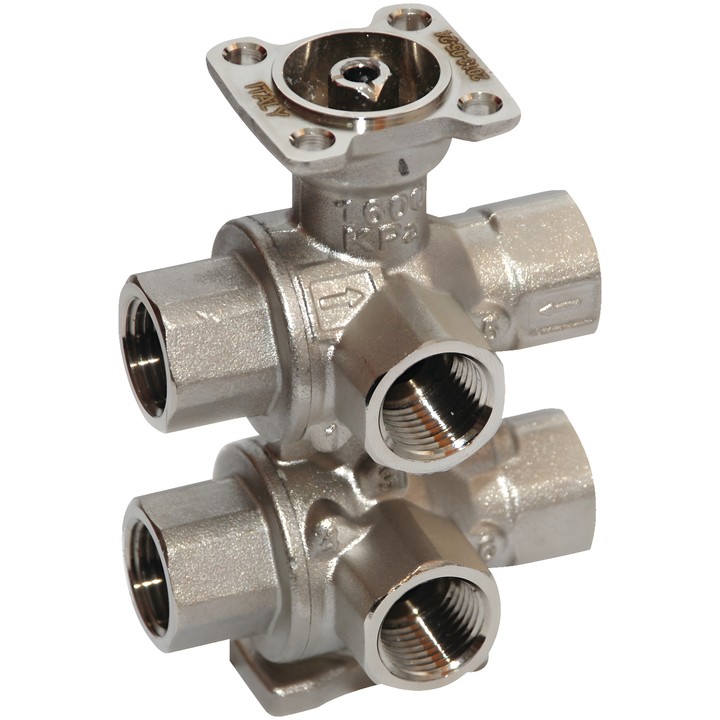

Belimo R3015-P25-P63B2 - 6-way control valve

Name: Belimo R3015-P25-P63B2 - 6-way control valve
Brand: Belimo
SKU: R3015-P25-P63B2
Price: 1141.44 PLN
Availability: OutOfStock

Belimo

zł1,141.44

VAT included

zł928.00 tax excluded

Belimo 6-way control valve for switching or modulating control on the water side of heating and cooling units in closed-loop water systems. DN 15, PN 16, Rp 1/2" female thread; Kvs (Sequence 1) 0.25 m³/h and Kvs (Sequence 2) 0.63 m³/h.

The valve has an integrated pressure compensation function and a dead zone separating the two sequences.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo 6-way control valve

The valve is designed for switching or modulating control of flow on the water side of heating and cooling units in closed-loop water systems. One rotary actuator with a 90° rotation range operates both sequences.

Key features and specifications

DN 15, PN 16; Rp 1/2" female thread connection in accordance with ISO 7-1.
Kvs (Sequence 1): 0.25 m³/h; Kvs (Sequence 2): 0.63 m³/h.
Medium: water or water with up to max. 50% vol. glycol; medium temperature 6...80°C [43...176°F].
Linear flow characteristic; Class A leakage tightness (EN 12266-1).
90° rotation angle: Sequence 1 0...30° (recommended for cooling), dead zone 30...60°, Sequence 2 60...90° (recommended for heating).
The integrated pressure compensation function operates in the closed position (45°), while keeping the sequences separated.
Closing pressure ∆ps: 350 kPa; maximum differential pressure ∆pmax: 100 kPa.
Nickel-plated brass body; installation permitted from vertical to horizontal relative to the stem, but not with the stem pointing downwards.
