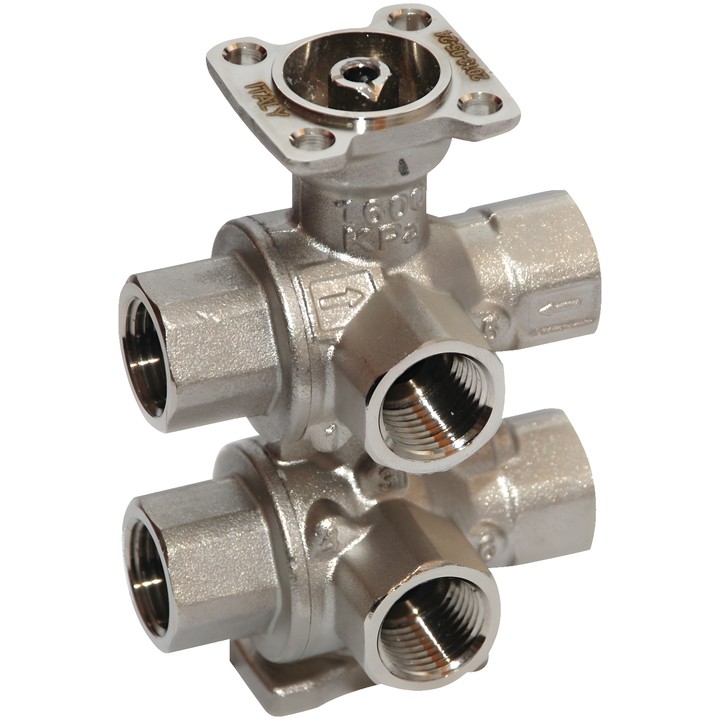

Belimo R3020-P63-2P5B2 - 6-way control valve

Name: Belimo R3020-P63-2P5B2 - 6-way control valve
Brand: Belimo
SKU: R3020-P63-2P5B2
Price: 1669.11 PLN
Availability: OutOfStock

Belimo

zł1,669.11

VAT included

zł1,357.00 tax excluded

Belimo 6-way control valve for closed-loop water systems. DN 20, PN 16, Rp 3/4" female thread; Kvs (Sequence 1) 0.63 m³/h and Kvs (Sequence 2) 2.5 m³/h.

The valve operates two cooling and heating sequences. It has an integrated pressure compensation function in the closed position and a dead zone between sequences.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo R3020-P63-2P5B2 – 6-way control valve

Valve for switching or controlling the water side of heating and cooling elements in closed-loop water systems. The two sequences are controlled by a 90° rotation using a rotary actuator.

Key features and specifications

Type stated in BELIMO documentation: R3020-P63-2P5-B2.
DN 20, PN 16; Rp 3/4" female threaded connection in accordance with ISO 7-1.
Kvs (Sequence 1): 0.63 m³/h; Kvs (Sequence 2): 2.5 m³/h.
Medium: water or water with up to max. 50% by volume glycol; medium temperature 6...80°C [43...176°F].
Linear flow characteristic; bubble-tight, Class A (EN 12266-1).
Sequence 1: 0...30° (cooling recommended); dead zone: 30...60°; Sequence 2: 60...90° (heating recommended).
The integrated pressure compensation function operates in the closed position (45°), while keeping the two sequences separate.
Closing pressure ∆ps: 350 kPa; maximum differential pressure ∆pmax: 100 kPa.
Nickel-plated brass body; closing element made of chrome-plated brass.
Permitted installation position: from vertical to horizontal in relation to the stem; installation with the stem pointing downwards is not permitted.
