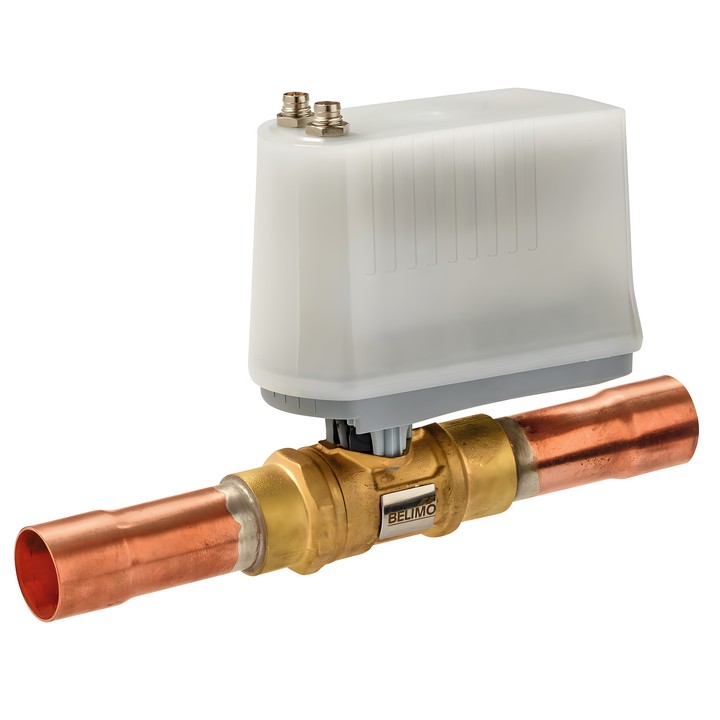

Belimo X8016M.113A3 - two-way expansion valve

Belimo X8016M.113A3 two-way expansion valve

Hermetically sealed expansion valve for capacity control in refrigeration and air-conditioning systems. It is suitable for refrigerants in safety class A3 (ISO 817); the documentation also specifies CFC, HFC, HFO and R290 refrigerants.

Key features and specifications

• Kvs: 1.2 m³/h; PN 50.
• Connection: internal ODF 16-16 mm solder socket.
• Power supply: AC/DC 24 V; power consumption during operation 1.5 W; power consumption for cable sizing 2.6 VA.
• Control: bipolar stepper motor signals (4 wires) from a superheat controller; motor running time 15 s / 90°.
• Configuration via smartphone using the xBALL Syncra app.
• Permissible differential pressure ∆pmax: 3500 kPa; flow characteristic: equal percentage (VDI/VDE 2173).
• Tightness: air-bubble tight, leakage rate A (EN 12266-1).
• Ambient temperature: -30...50°C [-22...122°F]; fluid temperature: -20...70°C [-4...158°F], with ZCQ-E: 70...120°C [158...248°F].
• IEC/EN degree of protection IP54; IEC/EN protection class III, Safety Extra-Low Voltage (SELV).
• Valve body: CW617N brass; closing element: AISI 316L stainless steel.
• Installation from vertical to horizontal relative to the stem; installation with the stem pointing downwards is not permitted.
• Maintenance-free valve; manual adjustment with the actuator disconnected.

Cables are not included in the delivery. The documentation recommends using only Belimo Z-C24X3R cables...
