Belimo 22ADP-184B - air differential pressure sensor

Belimo 22ADP-184B - air differential pressure sensor

Belimo
zł1,429.88
VAT included
zł1,162.50 tax excluded

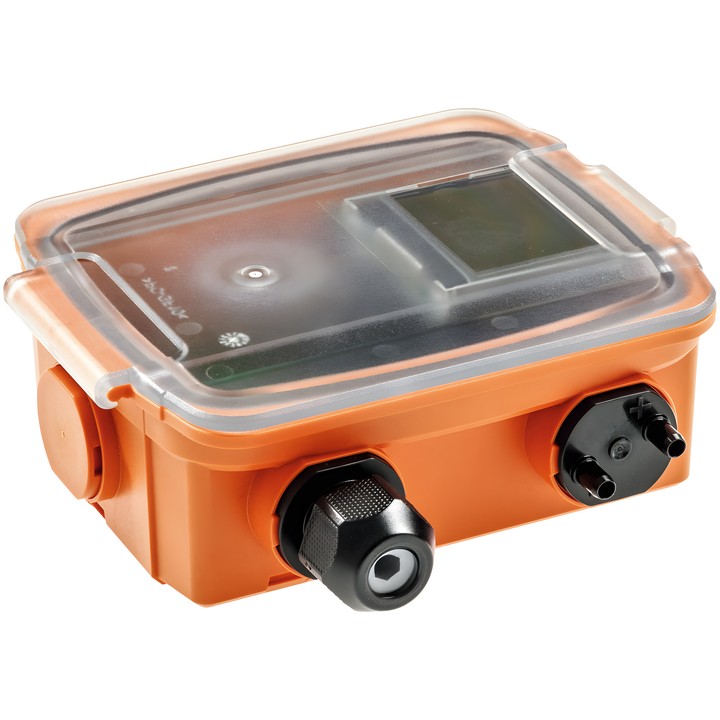

The Belimo 22ADP-184B air differential pressure sensor has a measuring range of -100...2500 Pa. It offers 8 selectable measuring ranges, an LCD and an Auto-Zero function.

Power supply: AC/DC 24 V; output signals: 0...5 V, 0...10 V or 4...20 mA. Protection rating: IP65 / NEMA 4X.

Delivery in approx. 14 days
Share

Belimo 22ADP-184B air differential pressure sensor

Transmitter for monitoring the differential pressure of air and other non-flammable, non-aggressive gases. The documentation lists air filter, fan V-belt and differential pressure system monitoring as typical HVAC applications.

Key features and technical data

  • Measuring range: -100...2500 Pa; 8 selectable measuring ranges.
  • Output signals: 0...5 V, 0...10 V or 4...20 mA. The 0...5/10 V voltage output is selected using a switch.
  • Nominal voltage: AC/DC 24 V.
  • Backlit LCD; readings in Pa or inch WC (configurable).
  • Automatic Auto-Zero calibration.
  • Adjustable typical response time: 0.8 s or 4.0 s.
  • Protection rating: IP65 / NEMA 4X.
  • Electrical connection: removable spring terminal block, max. 2.5 mm².

The package includes a mounting plate, 2 plastic duct connectors, a 2 m PVC tube, dowels and screws.

  • Brand
    Belimo
  • Reference
    22ADP-184B
  • EAN13
    7630498100925

  • Electrical connection
    Terminals
  • Measured values
    Differential pressure
  • Output signal
    0...5 V 0...10 V 4...20 mA
  • Pressure measuring range
    -100...2500 Pa | -0.4...10 inch WC
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V selectable by switch
  • Display type
    LCD
  • Output voltage range [Range]
    1 x 0...5 V, 0...10 V, min. resistance 10 kΩ
  • Current output power [Range]
    1x 4...20 mA, max. resistance 500 Ω

Techniczna karta katalogowa

Download (3.55MB)

Instrukcja montażu

Download (993.72KB)

Techniczna karta katalogowa – 22ADP-184..

Download (3.56MB)

EU Declaration of Conformity – 22ADP-184B

Download (40.38KB)

Environmental Declaration – 22ADP..

Download (72.08KB)
In business since 2005
Over 20 years of experience
A trusted partner
Reliable service and customer trust
Technical support
Help with selecting and operating equipment
