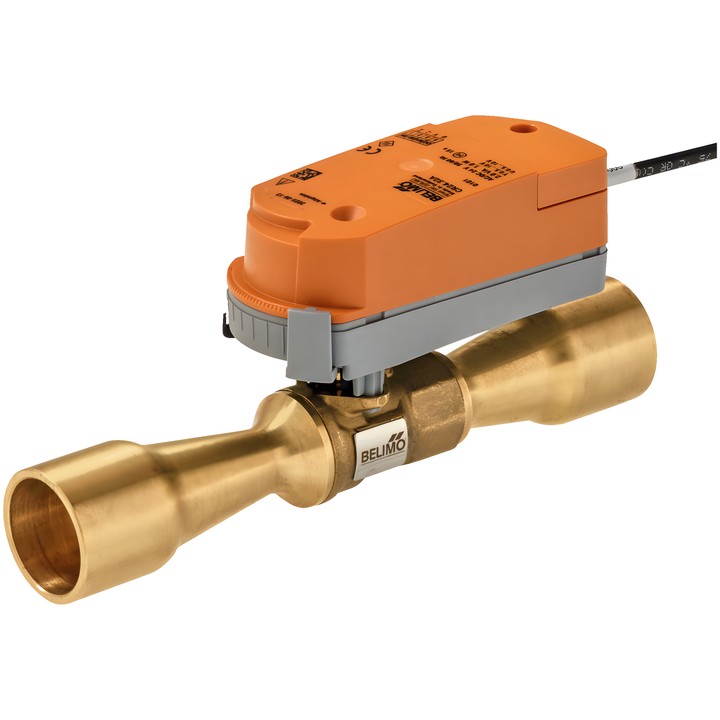

Belimo X8028M.2A323 - two-way control valve for refrigerants

Name: Belimo X8028M.2A323 - two-way control valve for refrigerants
Brand: Belimo
SKU: X8028M.2A323
Price: 3078.69 PLN
Availability: OutOfStock

Belimo

zł3,078.69

VAT included

zł2,503.00 tax excluded

Belimo X8028M.2A323 two-way control valve for regulating refrigerant flow. Kvs 4.8 m³/h, ODF connection 28-28 mm and maximum allowable operating pressure ps 5000 kPa.

Suitable for safety class A3 refrigerants (ISO 817) and CFC, HFC, HFO and R290. AC/DC 24 V power supply, modulating control.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo X8028M.2A323 – control valve

Two-way control valve for regulating refrigerant flow. The flow characteristic is equal-percentage (VDI/VDE 2173). The documentation indicates that flow is possible in both directions.

Key parameters

Kvs: 4.8 m³/h; connection: internal ODF soldering sleeve 28-28 mm.
Maximum allowable operating pressure ps: 5000 kPa; maximum differential pressure ∆pmax: 3500 kPa.
Medium temperature range: -20...70°C [-4...158°F]; with ZCQ-E: 70...120°C [158...248°F].
Power supply AC/DC 24 V; control signal range Y: 0.5...10 V; position feedback signal U: 0.5...10 V.
Motor running time: 15 s / 90°; power consumption during operation and in the rest position: 0.3 W; power consumption for wire sizing: 0.6 VA.
Power and control connection: 3 m cable, 4x 0.34 mm²; degree of protection IEC/EN IP40; protection class IEC/EN III, Safety Extra-Low Voltage (SELV).
Tightness: air-bubble tight, leakage rate A (EN 12266-1).
Body: CW617N brass; closing element: AISI 316L stainless steel.

The valve can be installed with the stem from vertical to horizontal; installation with the stem pointing downwards is not permitted. Ambient temperature range is -30...60°C [-22...140°F], without radiation exposure.
