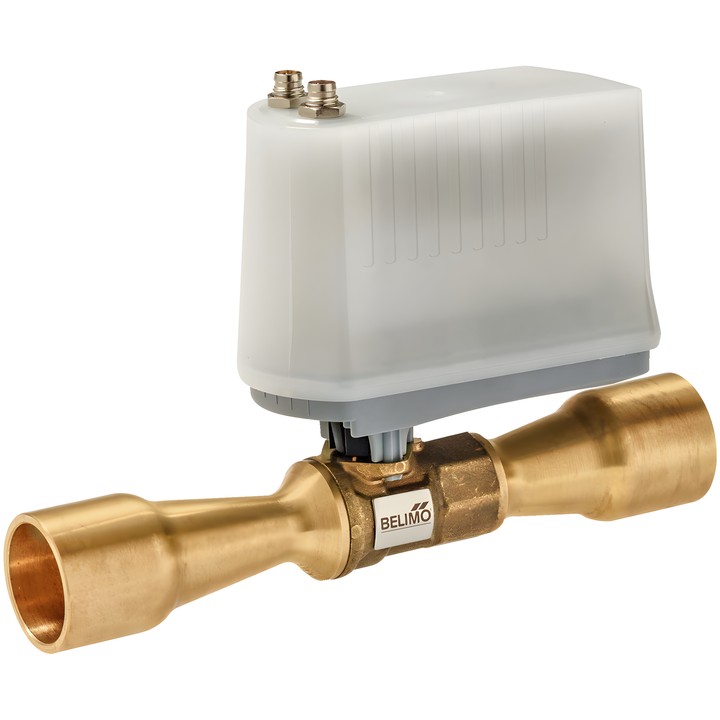

Belimo X8035M.2A3A3 - two-way expansion valve

Name: Belimo X8035M.2A3A3 - two-way expansion valve
Brand: Belimo
SKU: X8035M.2A3A3
Price: 4816.68 PLN
Availability: OutOfStock

Belimo

zł4,816.68

VAT included

zł3,916.00 tax excluded

Belimo X8035M.2A3A3 two-way expansion valve for refrigeration and air conditioning systems. Kvs 4.8 m³/h, connection with internal solder socket ODF 35-35 mm and operating pressure ps 5000 kPa.

Suitable for A3 safety-class refrigerants (ISO 817) and CFC, HFC, HFO and R290 refrigerants. AC/DC 24 V supply; configuration via the xBALL Syncra app on a smartphone.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo X8035M.2A3A3 – two-way expansion valve

Hermetically sealed expansion valve for continuous capacity control in refrigeration and air conditioning applications. The valve closes tightly and is maintenance-free; it has a manual override mechanism.

Key features and parameters

Kvs 4.8 m³/h; connection with internal solder socket ODF 35-35 mm; PN 50.
Suitable for A3 safety-class refrigerants (ISO 817) and CFC, HFC, HFO and R290 refrigerants.
Permissible operating pressure ps 5000 kPa; maximum differential pressure ∆pmax 3500 kPa.
AC/DC 24 V supply; power consumption during operation 1.5 W, 2.6 VA for cable sizing.
Bipolar stepper motor signals (4 wires) from the superheat controller; MP-Bus communication and configuration via the xBALL Syncra app on a smartphone.
Motor travel time 15 s / 90°; equal-percentage flow characteristic (VDI/VDE 2173).
Ambient temperature -30...50°C; fluid temperature -20...70°C, with ZCQ-E 70...120°C.
Bubble-tight shut-off, leakage class A (EN 12266-1); IEC/EN IP54 protection rating.
Valve body: CW617N brass; closing element: AISI 316L stainless steel.
Permissible mounting position: from vertical to horizontal relative to the spindle.

Cables are not included; use only Belimo Z-C24X3R.. cables.
