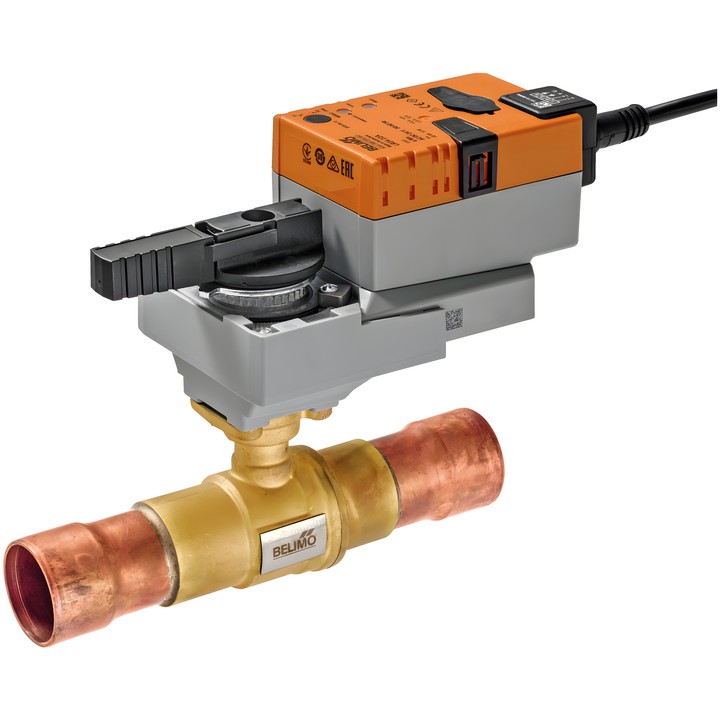

Belimo X8035M.4392A - two-way control valve for refrigerants

Name: Belimo X8035M.4392A - two-way control valve for refrigerants
Brand: Belimo
SKU: X8035M.4392A
Price: 6624.78 PLN
Availability: OutOfStock

Belimo

zł6,624.78

VAT included

zł5,386.00 tax excluded

Belimo X8035M.4392A two-way control valve for regulating the flow of HFC and HFO refrigerants, suitable for A2L safety class refrigerants (ISO 817). Kvs 15.5 m³/h, ODF 35-35 mm internal solder connections, PN 45.

The AC/DC 24 V actuator provides Y 0.5...10 V signal control and sets the safety position in the event of a power failure thanks to SuperCap.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo X8035M.4392A – control valve for refrigeration systems

The two-way ball valve with rotary actuator is used to regulate the flow of HFC and HFO refrigerants. It is suitable for A2L safety class refrigerants (ISO 817). The actuator with SuperCap function moves the valve to the set safety position following a power failure, taking the configured backup time into account.

Key technical data

Kvs: 15.5 m³/h; PN 45; maximum differential pressure ∆pmax: 1800 kPa.
Connection: ODF 35-35 mm internal solder socket.
Power supply: AC/DC 24 V; rated voltage frequency: 50/60 Hz.
Power consumption during operation: 11 W; in standby position: 3 W; for cable sizing: 22 VA.
Control signal Y: 0.5...10 V; position feedback signal U: 0.5...10 V.
Motor running time: 4 s / 90°; travel time to safety position: <4 s / 90°.
Safety position: NC/NO or adjustable from 0...100% using the POP knob.
Medium temperature: -20...90°C; ambient temperature: -30...50°C without radiation.
Degree of protection: IP54; protection class: III, SELV.
Valve body: CW617N brass; closing element: AISI 316L stainless steel.

Permitted mounting position: from vertical to horizontal relative to the stem; installation with the stem pointing downwards is not permitted. Flow may be in either direction. When used with flammable refrigerants, the user must verify the product's suitability for the specific application.
