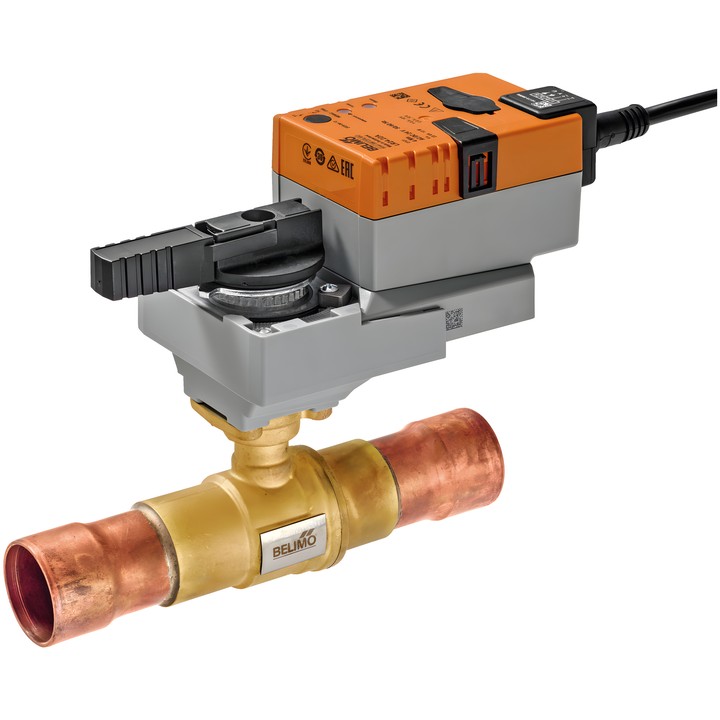

Belimo X8054M.6322A - two-way control valve for refrigerants

Name: Belimo X8054M.6322A - two-way control valve for refrigerants
Brand: Belimo
SKU: X8054M.6322A
Price: 5602.65 PLN
Availability: OutOfStock

Belimo

zł5,602.65

VAT included

zł4,555.00 tax excluded

Belimo X8054M.6322A two-way control valve for regulating the flow of HFC and HFO refrigerants. Kvs 43 m³/h, ODF 54-54 mm internal solder connections.

The actuator, powered by AC/DC 24 V, supports modulating control; the Y signal range is 0.5...10 V.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo X8054M.6322A – technical data

Two-way control valve with rotary actuator, designed to regulate the flow of HFC and HFO refrigerants.

Kvs: 43 m³/h; connection: ODF 54-54 mm internal solder socket.
Allowable pressure ps: 5000 kPa; maximum differential pressure ∆pmax: 3200 kPa.
Medium temperature: -20...90°C [-4...194°F].
Power supply: AC/DC 24 V; power consumption during operation: 13 W; in standby: 2 W; for wire sizing: 23 VA.
Modulating control: Y range 0.5...10 V; position feedback signal U 0.5...10 V.
Actuator running time: 9 s / 90°; electrical connection: 3 m cable, 4x 0.75 mm².
Tightness: air-bubble tight, leakage rate A (EN 12266-1).
Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
Body: CW617N brass; closing element: AISI 316L stainless steel.
Installation from vertical to horizontal in relation to the stem; installation with the stem pointing downwards is not permitted.

Ambient temperature: -30...50°C [-22...122°F]. Operation within 40...50°C [104...122°F] is possible only subject to the limitations specified by the manufacturer; contact the supplier.
