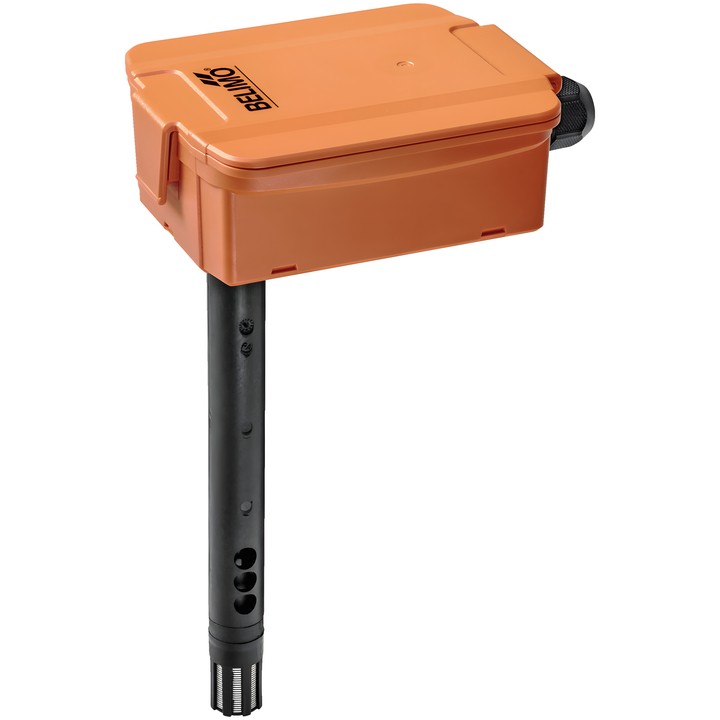

Belimo 22DTM-11 - duct sensor for CO₂, humidity and temperature

Name: Belimo 22DTM-11 - duct sensor for CO₂, humidity and temperature
Brand: Belimo
SKU: 22DTM-11
Price: 1611.16 PLN
Availability: BackOrder

Belimo

zł1,611.16

VAT included

zł1,309.89 tax excluded

Active duct sensor for measuring CO₂, humidity and air temperature. AC/DC 24 V supply; three voltage outputs 0...5 V or 0...10 V, adjustable via jumper.

Probe length 180 mm, diameter 19.5 mm. Enclosure rating IP65 / NEMA 4X.

Delivery in approx. 14 days

Belimo 22DTM-11 duct sensor

Active sensor for measuring CO₂, relative humidity and air temperature in a duct. CO₂ measurement uses dual-channel NDIR technology.

Key specifications

Nominal supply: AC/DC 24 V; voltage range: AC 19...29 V / DC 15...35 V.
Three voltage outputs: 3 x 0...5 V, 0...10 V; minimum resistance 10 kΩ. Output signal 0...5/10 V adjustable via jumper.
CO₂ measuring range: factory setting 0...2000 ppm; with A-22G-A05: 0...5000 ppm.
Relative humidity measuring range: 0...100% RH.
Temperature measuring range: 0...50°C [32...122°F].
Probe length: 180 mm; probe diameter: 19.5 mm.
Enclosure rating: IP65 / NEMA 4X.
Electrical connection: removable spring-cage terminal block, max. 2.5 mm².
A-22D-A35 mounting flange included.

The A-22G-A05 Bluetooth module is required to configure the sensor using the Belimo Duct Sensor Assistant App. The app and module are not required for standard operation and configuration.
