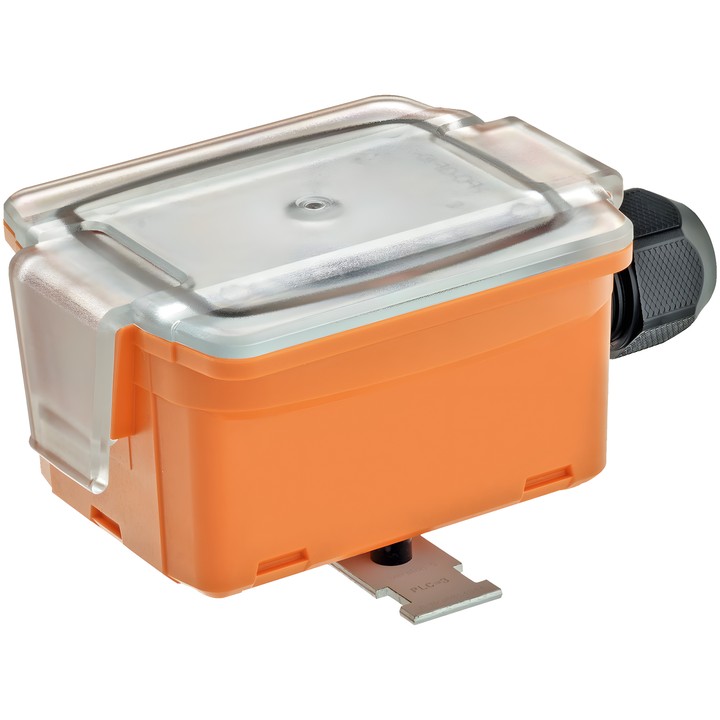

Belimo 22HH-10 - condensation sensor with switch

Name: Belimo 22HH-10 - condensation sensor with switch
Brand: Belimo
SKU: 22HH-10
Price: 439.53 PLN
Availability: BackOrder

Belimo

zł439.53

VAT included

zł357.34 tax excluded

Belimo 22HH-10 condensation sensor with an internal sensor, powered by AC/DC 24 V. Detects condensation on cooled surfaces and provides a potential-free SPDT changeover contact.

LEDs indicate power and condensation. The enclosure has an IP65 / NEMA 4X protection rating.

Delivery in approx. 14 days

Belimo 22HH-10 – condensation sensor

The device detects condensation on cooled surfaces, such as chilled beams. The relay contact can be connected to a controller or display system, or wired in series with a cooling valve to interrupt the flow of cold water when condensation begins.

Key features and specifications

Internal sensor; measured value: condensation.
Rated voltage: AC/DC 24 V; voltage range: AC 21.6...26.4 V / DC 13.5...26.4 V.
Potential-free SPDT changeover contact; max. AC/DC 24 V / 1 A.
LED indication: green – power supply OK; red – condensation. Sensitivity adjustment.
Electrical connection: detachable spring terminal block, max. 2.5 mm²; cable gland with strain relief ø6...8 mm.
Protection rating: IP65 / NEMA 4X.
Ambient temperature: -20...50°C [-4...122°F]; medium temperature: -20...60°C [-4...140°F].
Included: thermal contact-enhancing fluid A-22P-A44 and cable tie.
