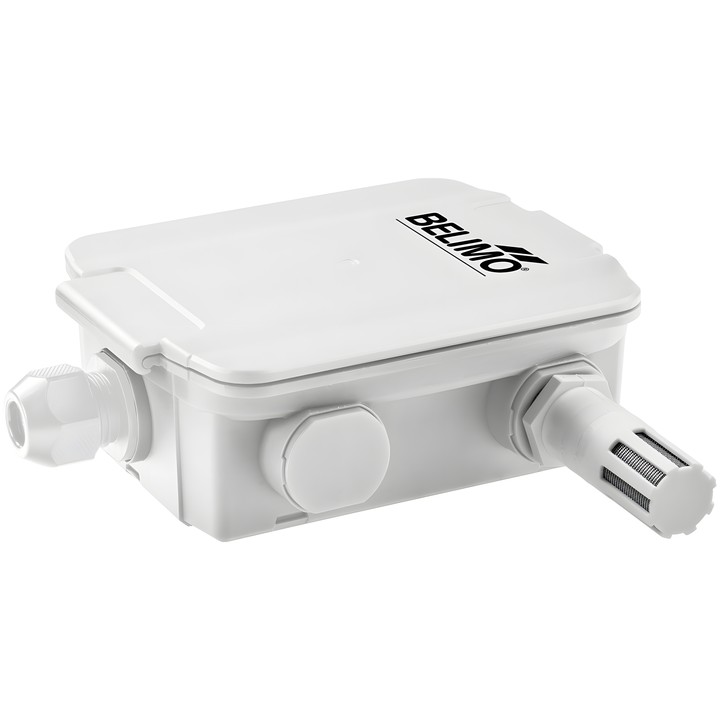

Belimo 22UTH-13 - external humidity and temperature sensor

Belimo 22UTH-13 – external sensor

Active sensor for measuring relative or absolute humidity and outdoor air temperature. Enthalpy or dew point can be selected instead of the humidity signal at the output.

Key features

• Nominal power supply DC 24 V; voltage range DC 13.5...26.4 V.
• Two current outputs 4...20 mA; max. resistance 500 Ω.
• Relative humidity measuring range: 0...100% RH in the absence of condensation.
• Four selectable temperature measuring ranges: S0 -40...60°C, S1 0...50°C, S2 -15...35°C, S3 -20...80°C.
• Temperature accuracy: ±0.3°C @ 25°C; humidity accuracy: ±2% between 0...80% RH @ 25°C.
• Enclosure rated IP65 / NEMA 4X; rain shield included.
• Removable terminal block with spring terminals, max. 2.5 mm².

The set also includes a mounting plate, plugs and screws.
