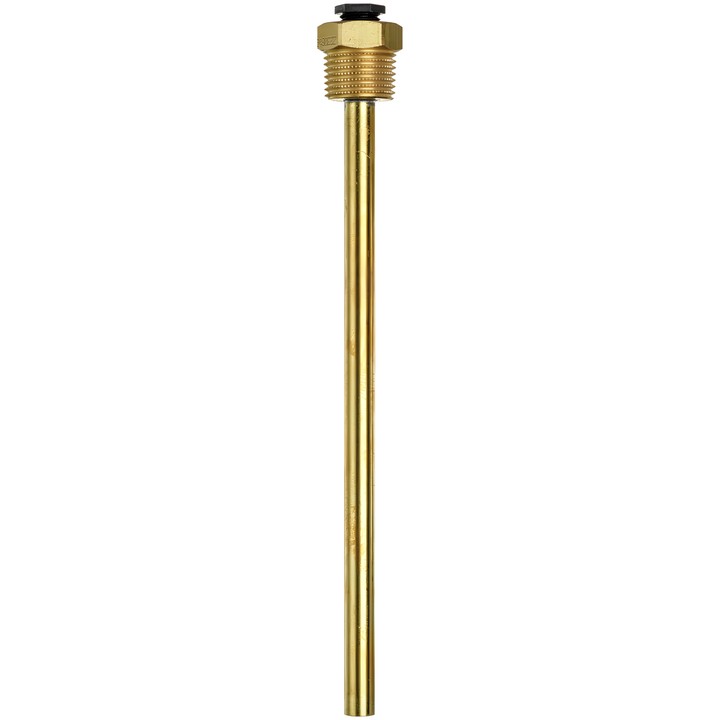

Belimo A-22P-A22 - brass immersion pocket for temperature sensor

Name: Belimo A-22P-A22 - brass immersion pocket for temperature sensor
Brand: Belimo
SKU: A-22P-A22
Price: 63.59 PLN
Availability: BackOrder

Belimo

zł63.59

VAT included

zł51.70 tax excluded

Belimo A-22P-A22 brass pocket for mounting a temperature sensor. It is 150 mm long, has a diameter of 9 mm, an R 1/2" male thread and an integrated compression fitting.

Delivery in approx. 14 days

Belimo A-22P-A22 – brass pocket

Pocket with an R 1/2" male thread and an integrated compression fitting, designed for immersion and cable sensors 01DT.., 22DT.., 01CT.., 22CT...

Key features and specifications

Pocket length: 150 mm; pocket diameter: 9 mm.
Spanner size: SW22.
Max. flow velocity: 7.2 m/s.
Media: water and water-glycol mixture.
PN: 16; medium temperature: max. 130°C.
Material: brass; turned part: CW614N (2.0401), tube: CW508L (2.0321), compression screw: polyamide (PA66/GF25).
Weight: 0.080 kg.
