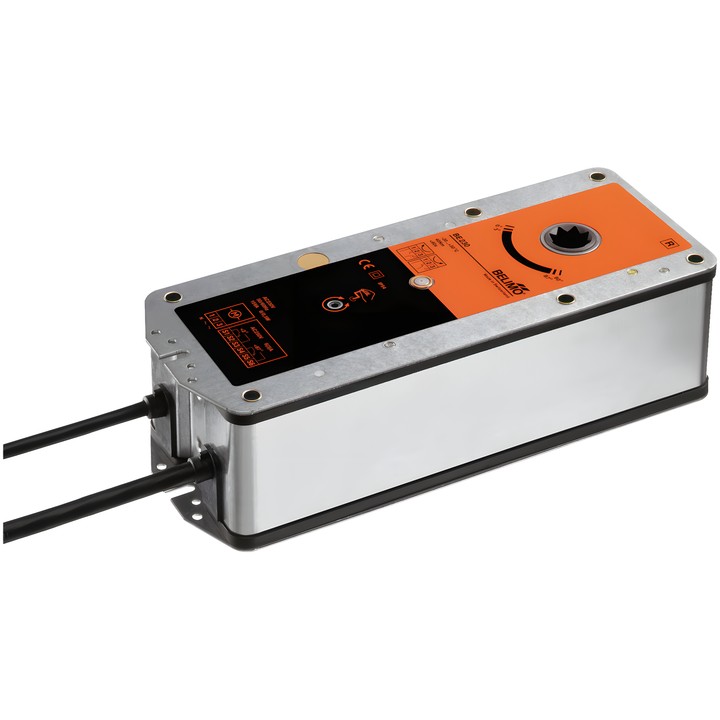

Belimo BE230-12 - actuator for smoke control dampers

Name: Belimo BE230-12 - actuator for smoke control dampers
Brand: Belimo
SKU: BE230-12
Price: 3557.16 PLN
Availability: OutOfStock

Belimo

zł3,557.16

VAT included

zł2,892.00 tax excluded

Belimo BE230-12 actuator for smoke control dampers with a torque of 40 Nm, AC 230 V supply and Close/Open control. Motor running time is <60 s / 90°.

Equipped with 2x SPDT with fixed switching points at 3° / 87°, a 12x12 mm form-fit connection with a through hollow shaft, and manual adjustment by crank.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo BE230-12 – actuator for smoke control dampers

Actuator designed for smoke control dampers, controlled in Close/Open mode. The direction of movement can be selected by left/right mounting. The scope of delivery includes a crank, indicator and protective bag.

Key technical data

Motor torque: 40 Nm; motor running time: <60 s / 90°.
Rated voltage: AC 230 V, 50/60 Hz; voltage range: AC 198...264 V.
Power consumption during operation: 8 W; in standby: 0.5 W; power consumption for cable sizing: 15 VA.
Control: Close/Open; 2x SPDT, switching points 3° / 87°.
Power and control connection: 1 m cable, 3x 0.75 mm², FRNC (halogen-free); auxiliary switch connection: 1 m cable, 6x 0.75 mm², FRNC (halogen-free).
Mechanical connection: 12x12 mm form-fit connection, through hollow shaft; maximum rotation angle: 100°.
Manual adjustment by crank; mechanical position indicator.
Degree of protection: IP54; IEC/EN protection class: II, reinforced insulation; ambient temperature: -30...50°C [-22...122°F].

The actuator is adapted to the damper and mounted on it by the smoke control damper manufacturer. Mains voltage and safety extra-low voltage must not be connected to the two auxiliary switches.
