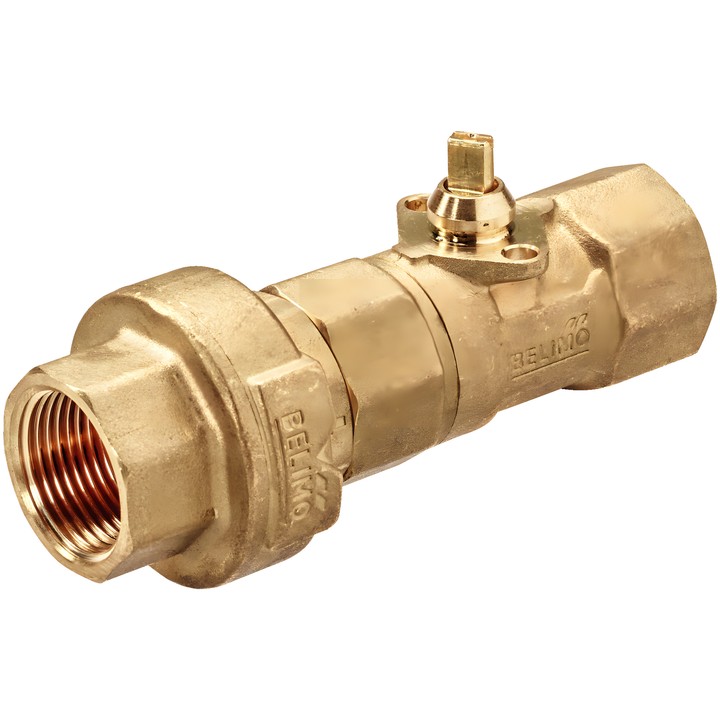

Belimo C220QFLH-F6 - 2-way PI flow limiter valve

Name: Belimo C220QFLH-F6 - 2-way PI flow limiter valve
Brand: Belimo
SKU: C220QFLH-F6
Price: 722.01 PLN
Availability: OutOfStock

Belimo

zł722.01

VAT included

zł587.00 tax excluded

Belimo C220QFLH-F6 2-way PI flow limiter valve (PIFLV) for closed water systems. DN 20, PN 25, Rp 3/4" female thread, V'nom 1200 l/h.

Medium temperature: 2...80°C [36...176°F]. Differential pressure range: ∆p 20...280 kPa.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo C220QFLH-F6 – PI flow limiter valve

2-way valve for closed water systems, designed for open/close control on the water side of fan coil units and heating and cooling ceilings. The integrated flow limiter maintains a constant flow rate at a differential pressure of 20...280 kPa when the valve is open at an angle of 90°.

Key technical data

DN 20, PN 25; connection: Rp 3/4" female thread.
Nominal flow rate V'nom: 1200 l/h (0.33 l/s).
Medium: water; medium temperature: 2...80°C [36...176°F].
Differential pressure: ∆p 20...280 kPa; closing pressure ∆ps: 520 kPa.
Differential pressure recommendation: 50 kPa to ensure quiet operation.
Tightness: bubble-tight, leakage class A (EN 12266-1).
Valve body: brass; closing element: chrome-plated brass.
Rotational angle: 90°.

Permitted mounting position: from vertical to horizontal relative to the stem; installation with the stem pointing downwards is not permitted. Observe the flow direction indicated by the arrow on the body.
