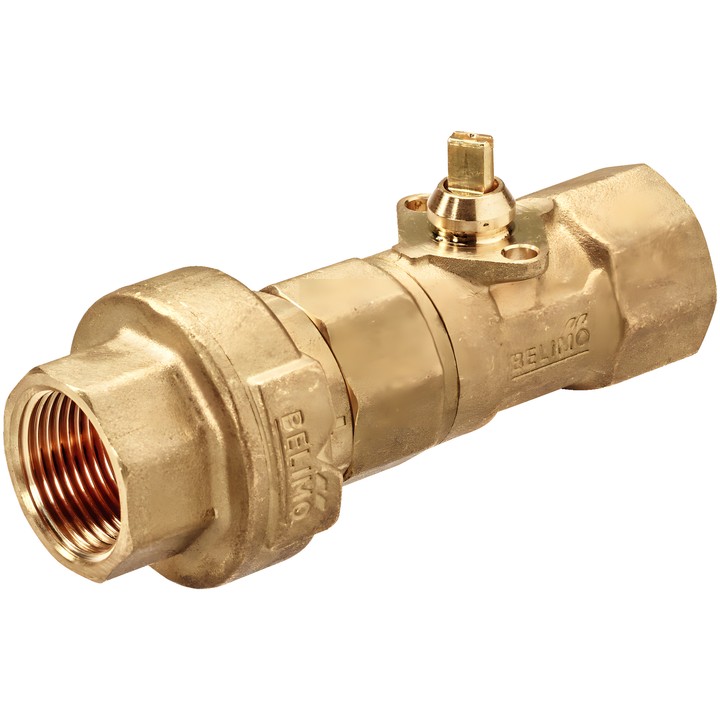

Belimo C220QFLH-H0 - 2-way PI flow limiter valve

Name: Belimo C220QFLH-H0 - 2-way PI flow limiter valve
Brand: Belimo
SKU: C220QFLH-H0
Price: 722.01 PLN
Availability: OutOfStock

Belimo

zł722.01

VAT included

zł587.00 tax excluded

Belimo C220QFLH-H0 is a 2-way PI flow limiter valve for closed water systems. DN 20, PN 25, Rp 3/4" female thread and nominal flow V'nom 2350 l/h.

The integrated limiter maintains a constant flow at a differential pressure of 20...280 kPa when the valve is open at an angle of 90°.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo C220QFLH-H0 – PI flow limiter valve

2-way valve with female thread, designed for closed water systems. The documentation specifies its use for on/off water-side control of fan coil units and heating and cooling ceilings.

Main features and specifications

DN 20, PN 25; connection: Rp 3/4" female thread.
Nominal flow V'nom: 2350 l/h (0.65 l/s).
Medium: water; medium temperature: 2...80°C [36...176°F].
Differential pressure: ∆p 20...280 kPa; closing pressure: 520 kPa.
Constant flow at a differential pressure of 20...280 kPa thanks to the integrated limiter when the valve is open at an angle of 90°.
Tightness: bubble-tight, leakage rate class A (EN 12266-1).
Valve body: brass; closing element: chrome-plated brass.
Rotation angle: 90°. Recommended differential pressure for quiet operation: 50 kPa.

Permitted installation position: from vertical to horizontal relative to the stem; installation with the stem pointing downwards is not permitted. Observe the flow direction indicated by the arrow on the body.
