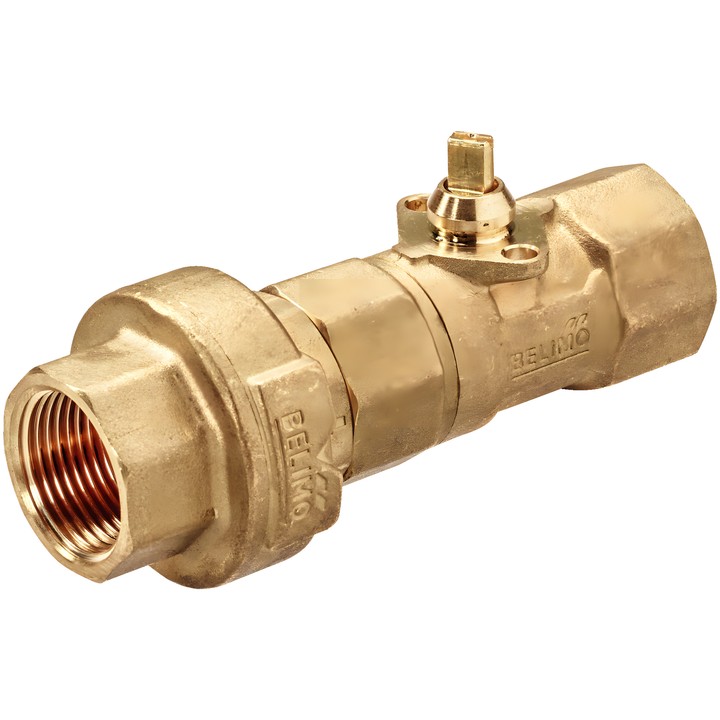

Belimo C225QFLH-H - 2-way PI flow limiter valve

Name: Belimo C225QFLH-H - 2-way PI flow limiter valve
Brand: Belimo
SKU: C225QFLH-H
Price: 722.01 PLN
Availability: OutOfStock

Belimo

zł722.01

VAT included

zł587.00 tax excluded

2-way PI flow limiter valve for closed water systems. DN 25, PN 25, Rp 1" female thread, V'nom 2900 l/h.

Fluid: water at 2...80°C [36...176°F]. The integrated limiter maintains a constant flow rate at differential pressure ∆p 20...280 kPa.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo C225QFLH-H – PI flow limiter valve

2-way valve for closed water systems, designed for on/off water-side control of fan coil units and heating and cooling ceilings. The integrated flow limiter maintains a constant flow rate at differential pressure ∆p 20...280 kPa when the valve is open at an angle of 90°.

Key features

Type: C225QFLH-H; 2-way design, DN 25, PN 25.
Connection: Rp 1" female thread.
Nominal flow rate: V'nom 2900 l/h (0.81 l/s).
Fluid: water; fluid temperature 2...80°C [36...176°F].
Differential pressure: ∆p 20...280 kPa; 50 kPa to ensure quiet operation.
Closing pressure ∆ps: 520 kPa.
Tightness: bubble-tight, leakage rate class A (EN 12266-1).
Body and stem: brass; closing element: chrome-plated brass.
Rotation angle: 90°.

Permitted installation position: from vertical to horizontal relative to the stem; installation with the stem pointing downwards is not permitted. Observe the flow direction indicated by the arrow on the body.
