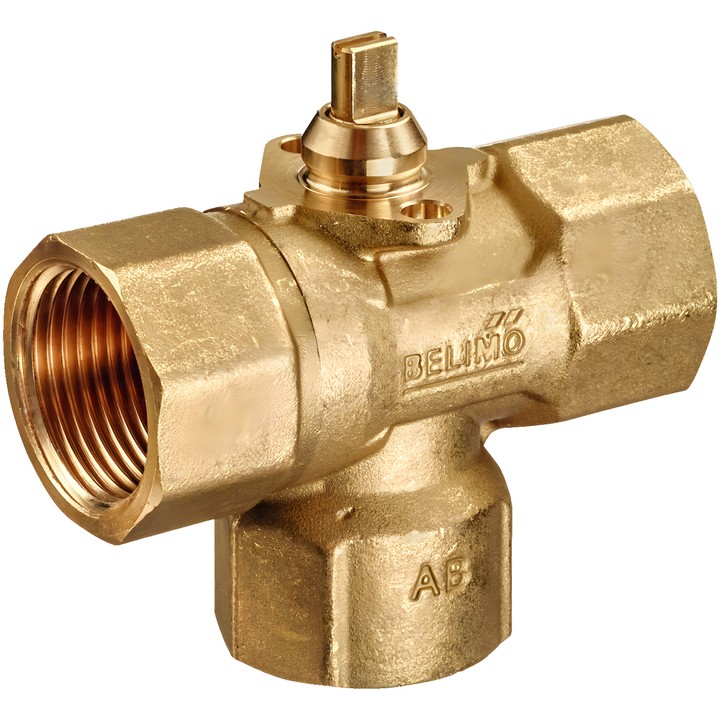

Belimo C325Q-J - 3-way changeover zone valve DN 25

Name: Belimo C325Q-J - 3-way changeover zone valve DN 25
Brand: Belimo
SKU: C325Q-J
Price: 485.85 PLN
Availability: OutOfStock

Belimo

zł485.85

VAT included

zł395.00 tax excluded

Belimo C325Q-J is a 3-way changeover zone valve DN 25 with Rp 1" female thread, PN 25 and Kvs 4 m³/h. Designed for closed water systems.

Suitable for water and water with up to 50% vol. glycol. Fluid temperature is 2...100°C [36...212°F], and 2...90°C with an actuator.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo C325Q-J – changeover zone valve

3-way valve for changeover and open/close control on the water side of ventilation and heating systems. Designed for closed water systems. The valve is operated by a rotary actuator controlled by an open/close signal.

Key features and specifications

DN 25, PN 25; Rp 1" female thread.
Kvs 4 m³/h; ps 1600 kPa.
Fluid: water, water with up to 50% vol. glycol.
Fluid temperature: 2...100°C [36...212°F]; 2...90°C with an actuator.
Maximum differential pressure ∆pmax 280 kPa; closing pressure 280 kPa. 50 kPa is specified for quiet operation.
Tightness: bubble-tight, leakage class A.
Brass body and stem; chrome-plated brass closing element.
90° angle of rotation; flow is possible in both directions.
Snap-fit actuator mounting, no tools required.

Installation notes

Permitted valve mounting position: from vertical to horizontal relative to the stem. Do not install with the stem pointing downwards. To achieve the 90° angle of rotation required for the changeover function, remove the actuator end stop.
